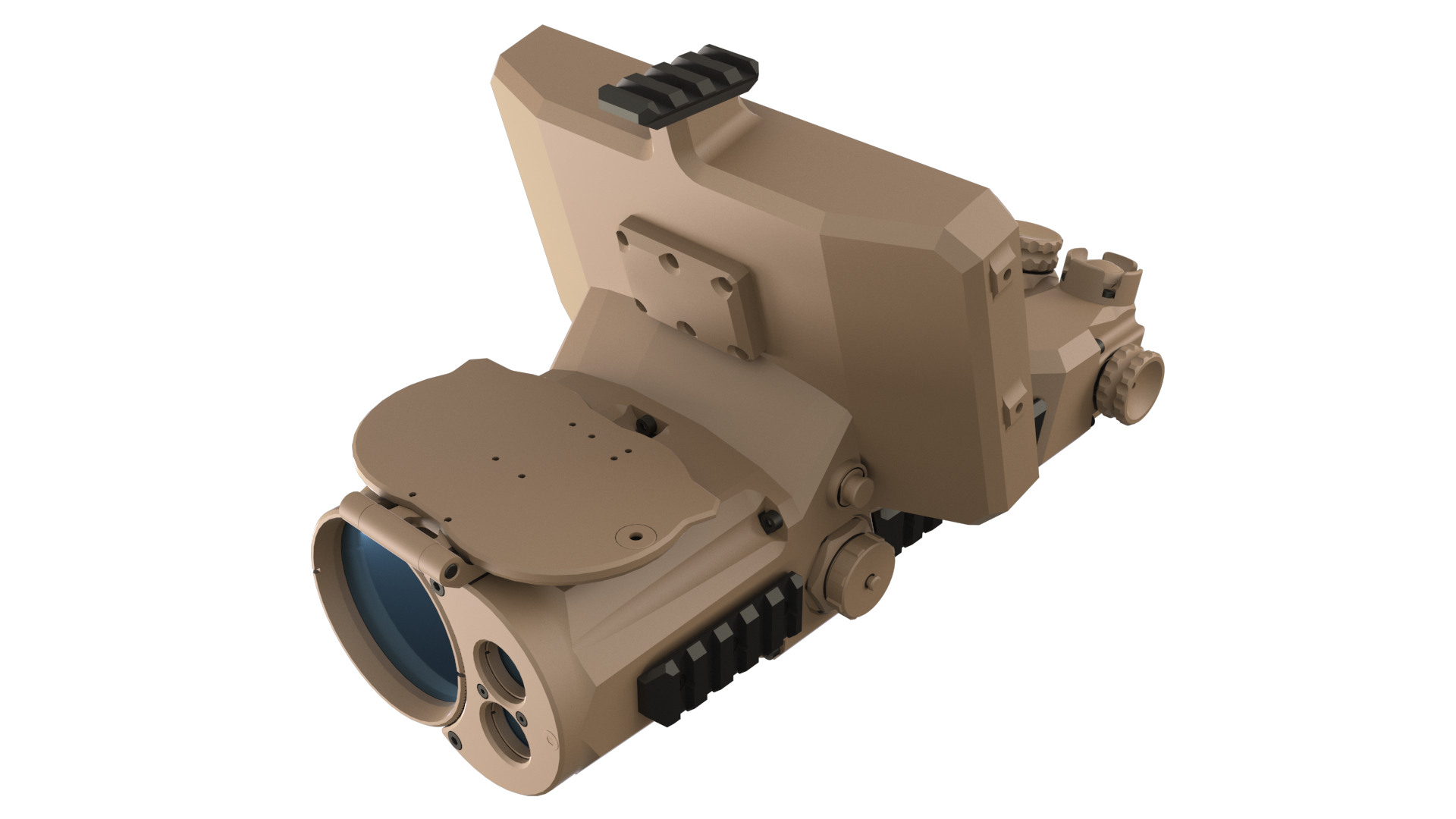

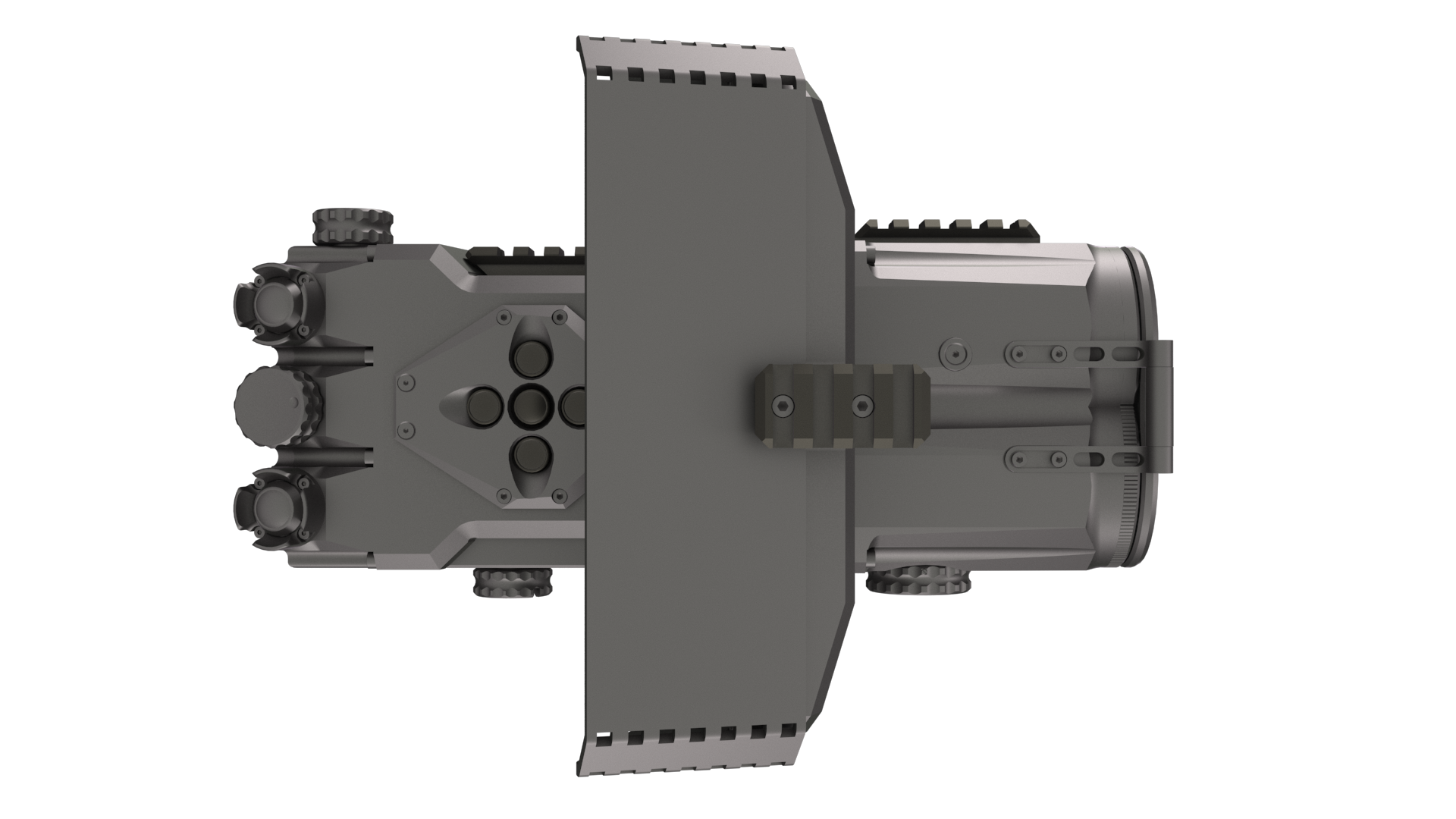

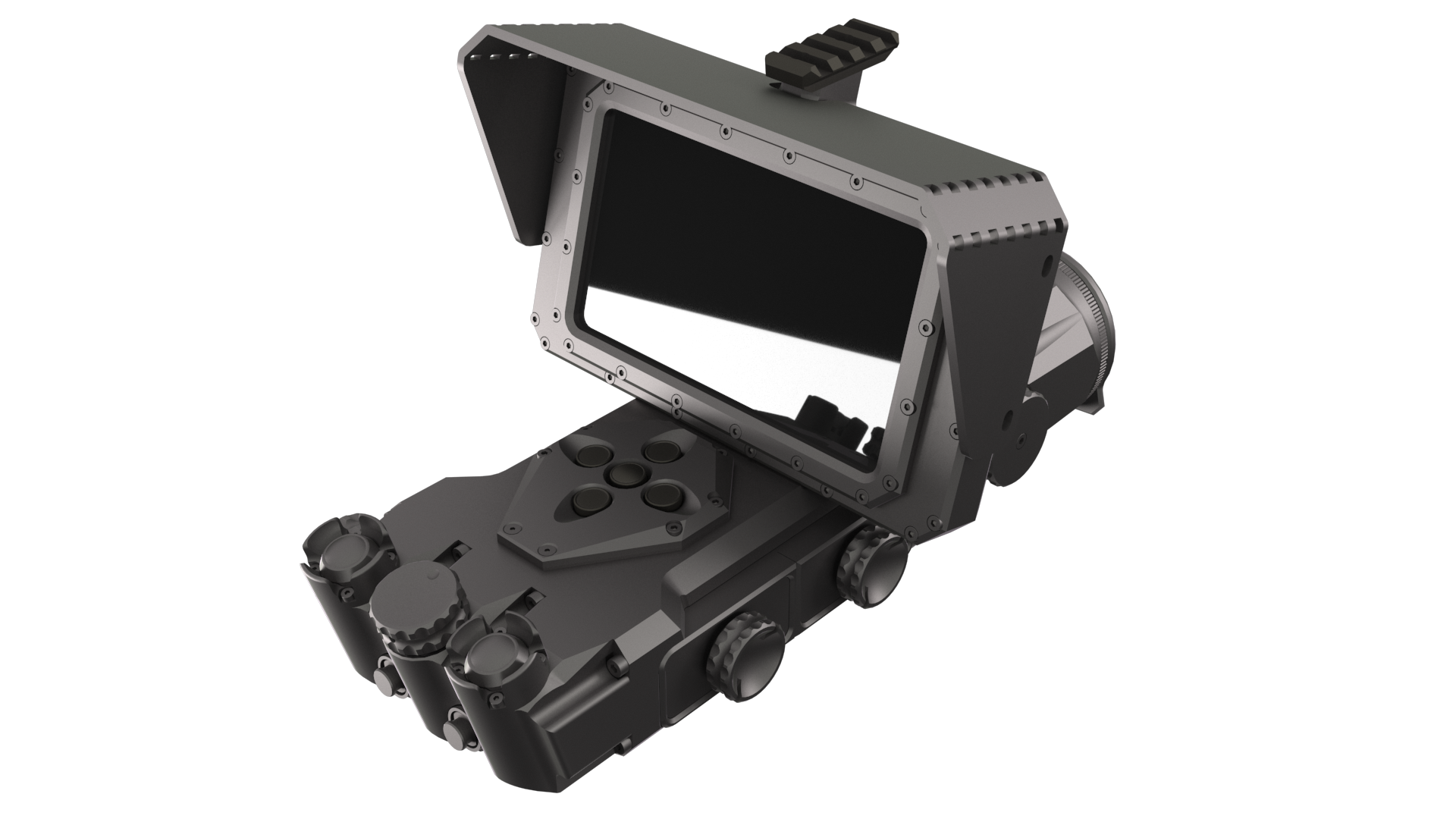

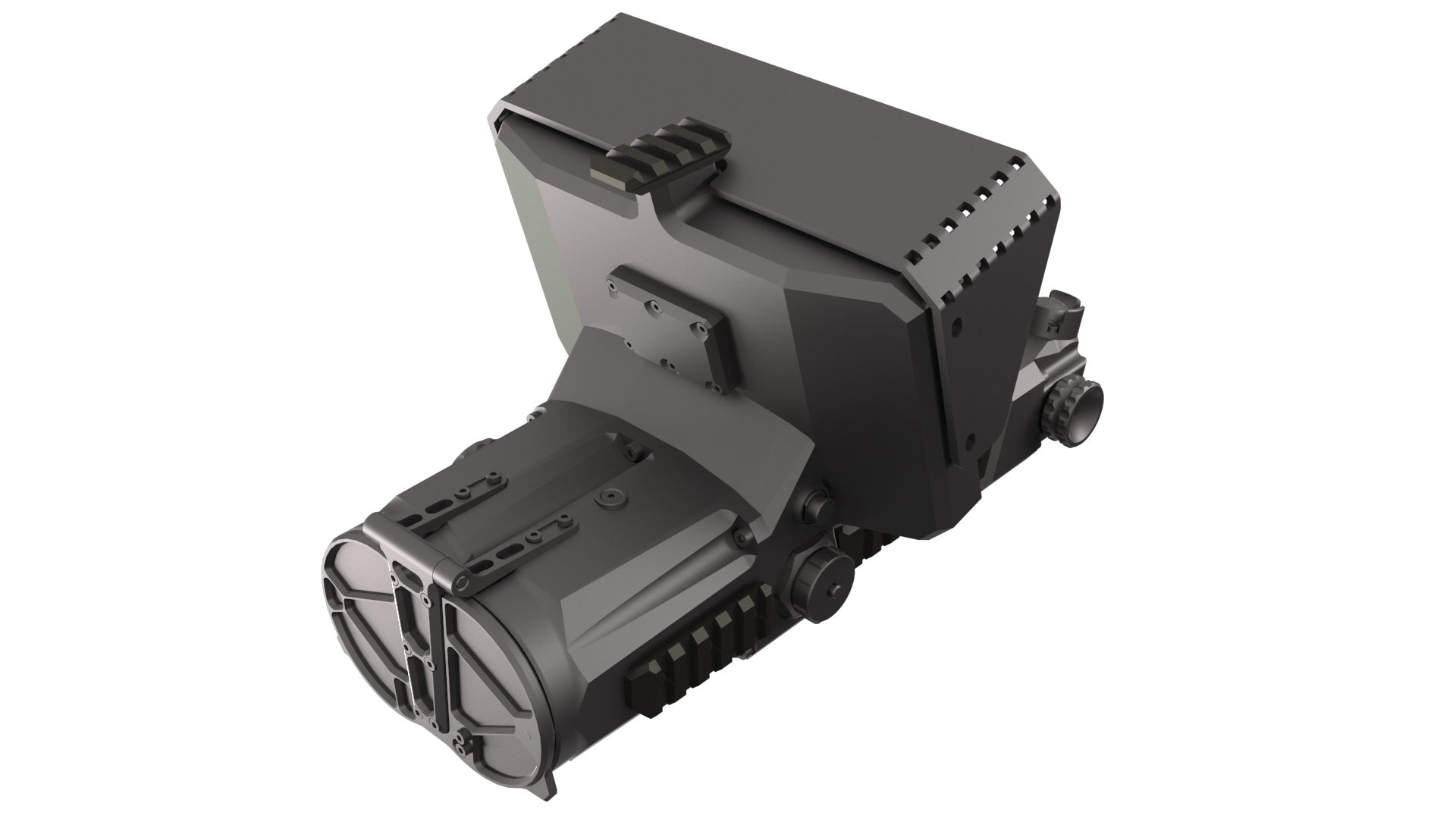

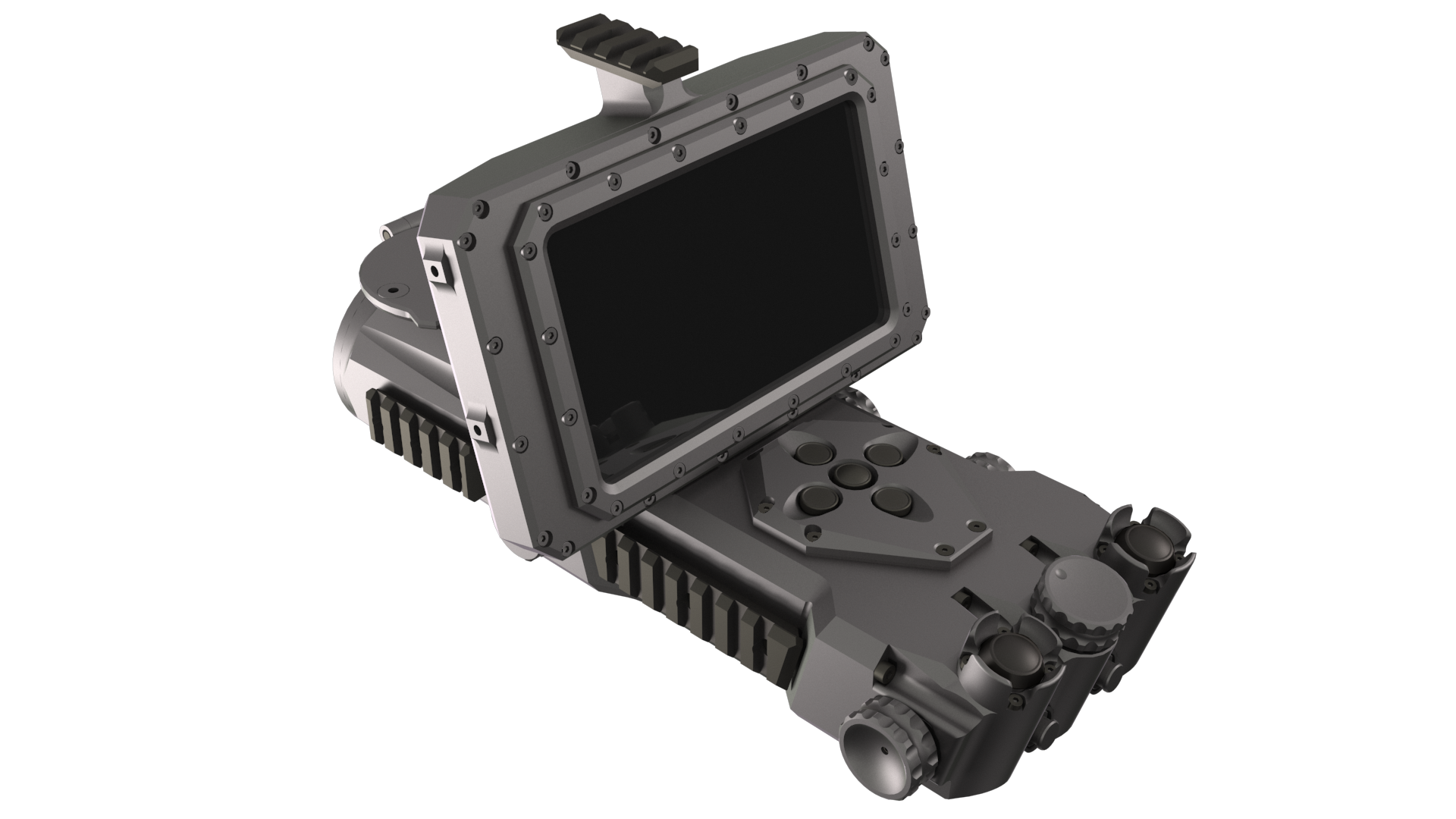

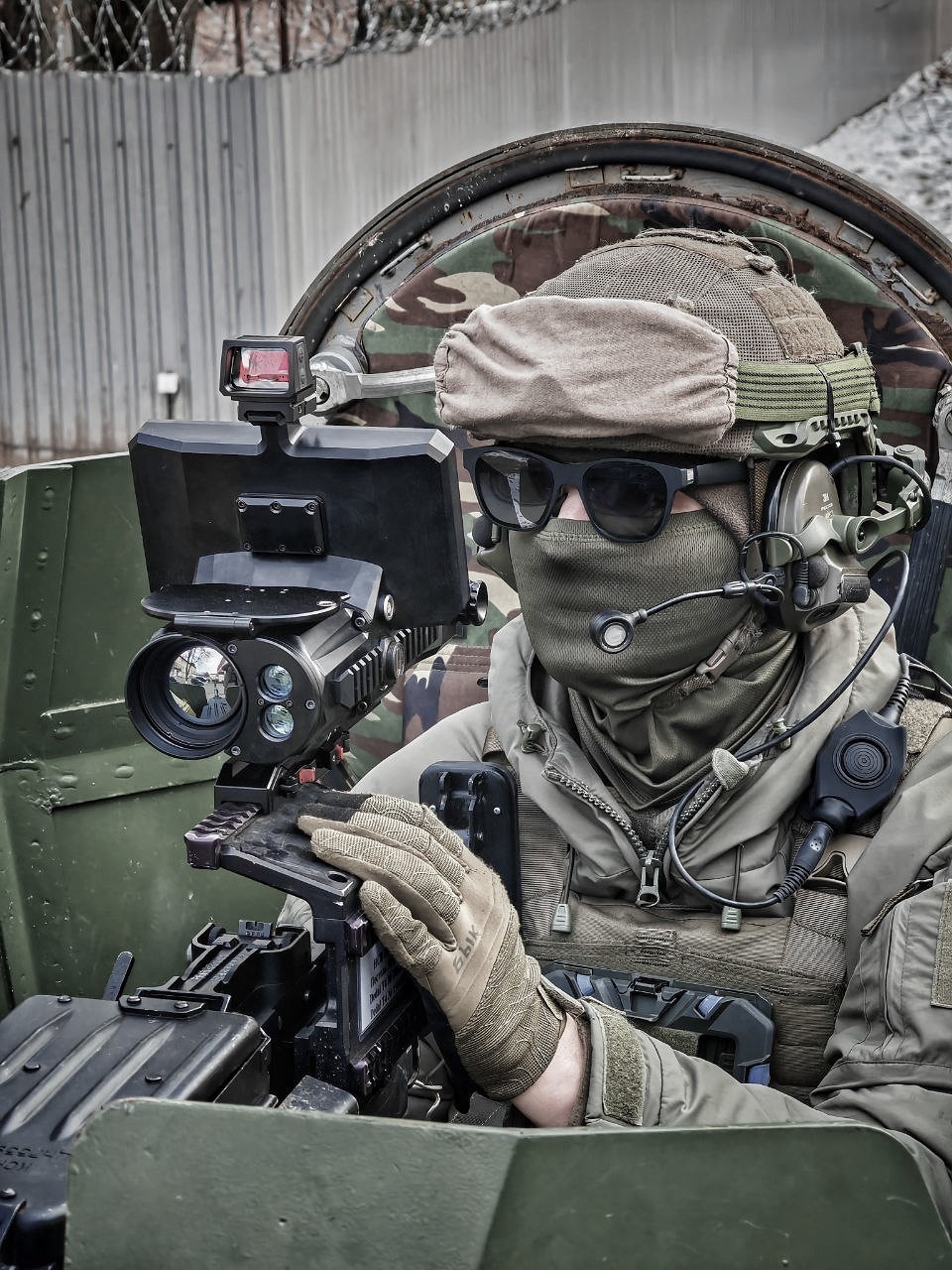

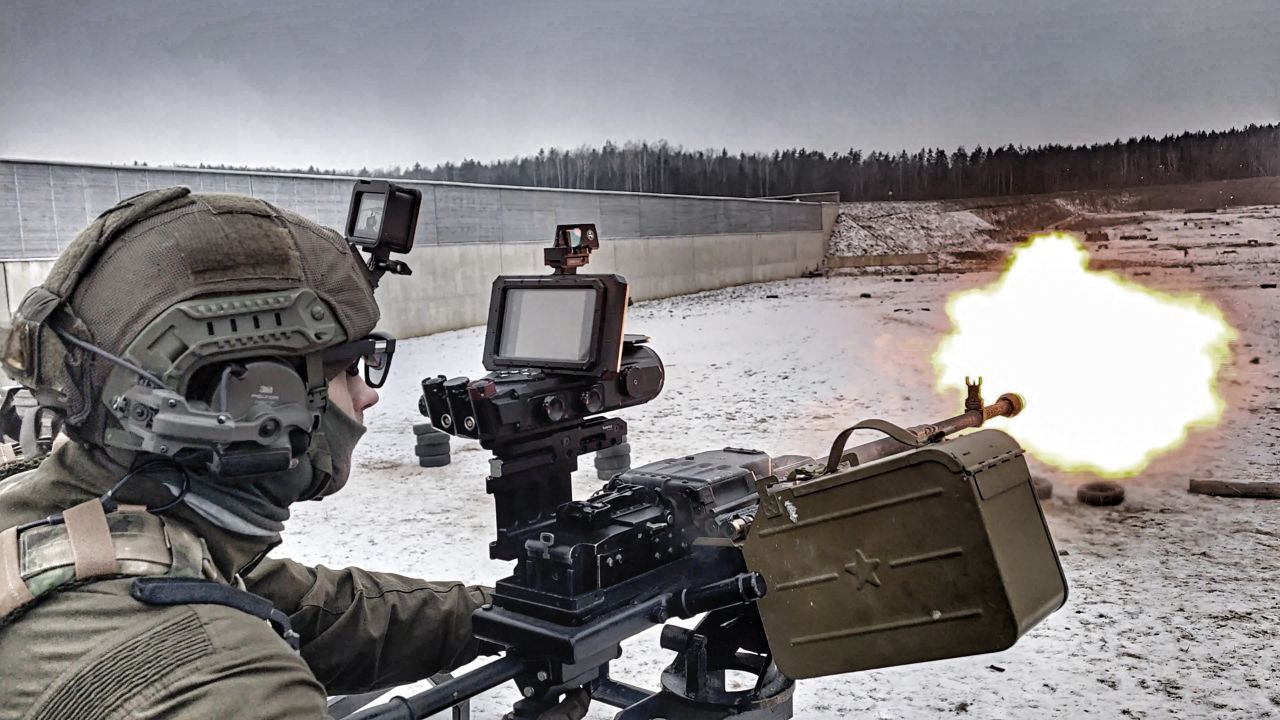

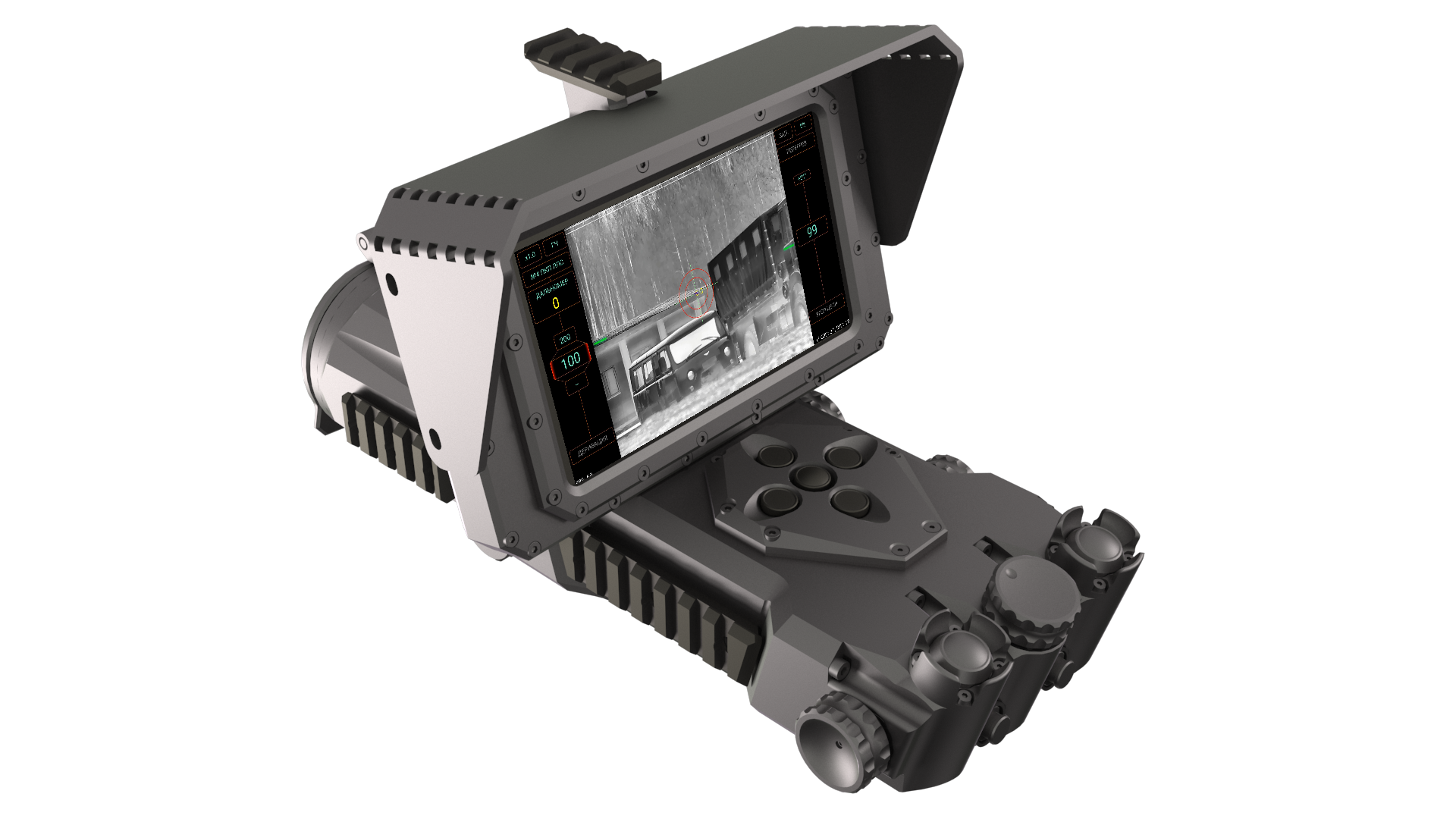

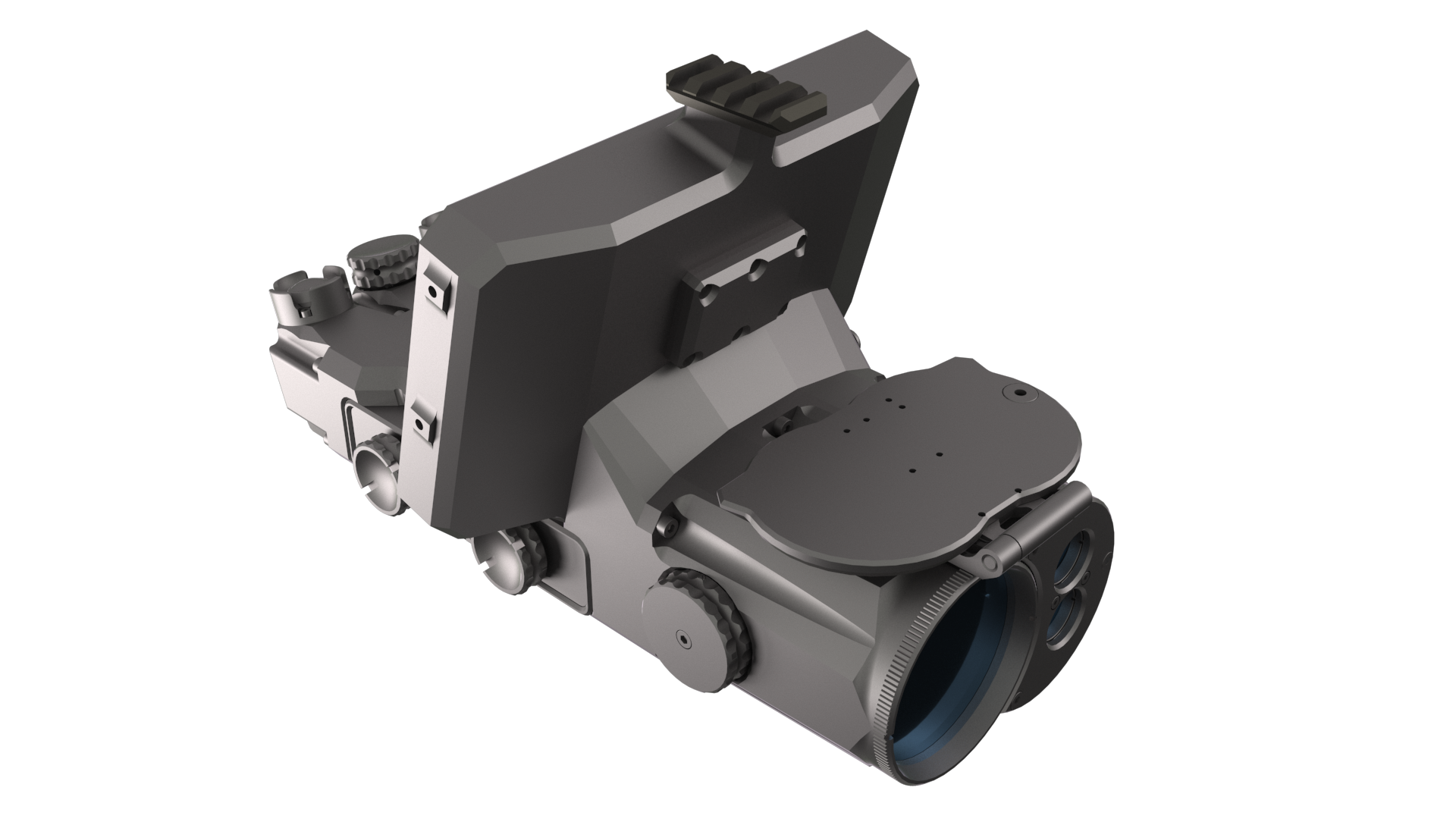

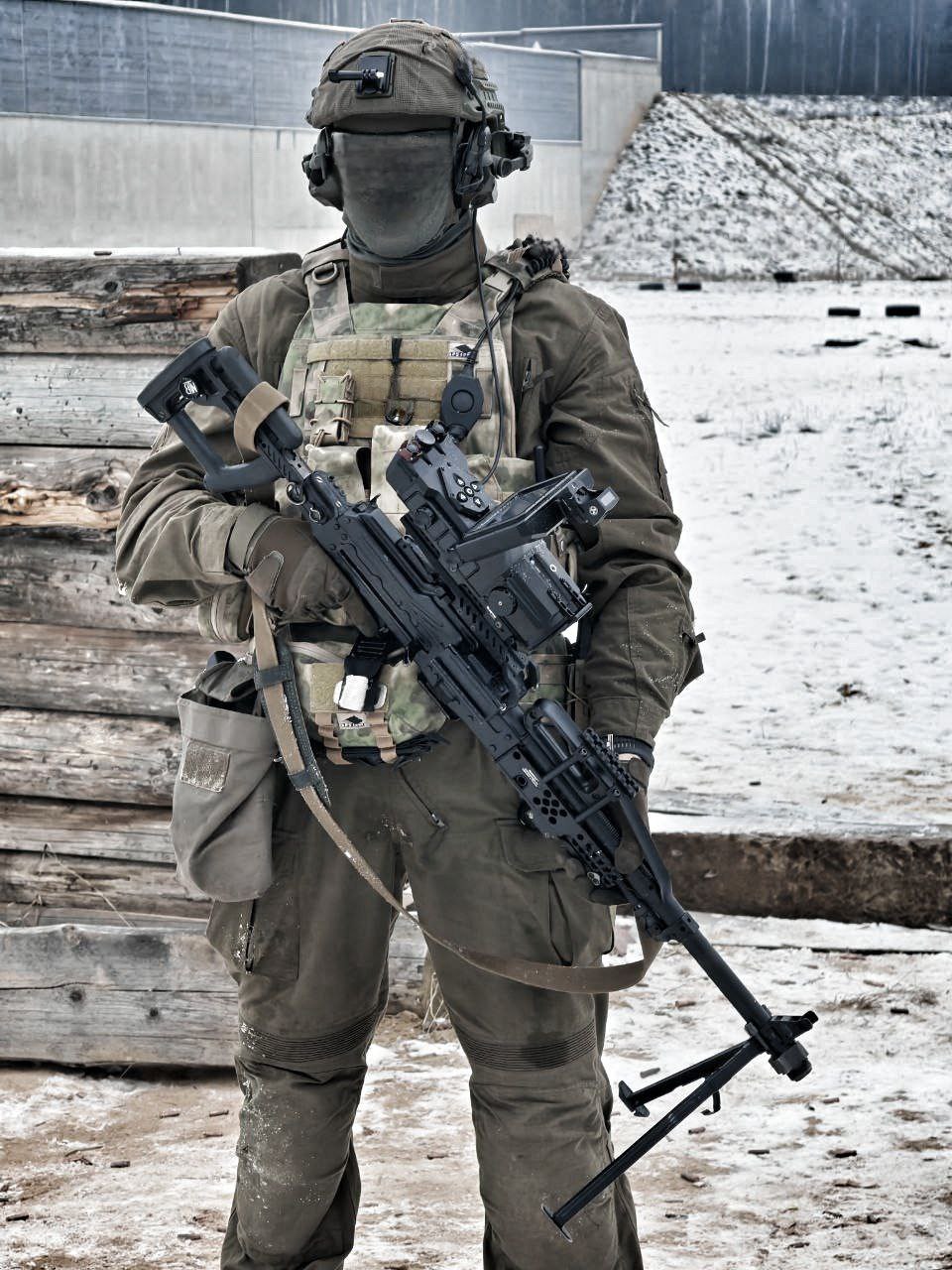

"ODIN" THERMAL SIGHT
WITH LASER RANGEFINDER AND AUTOMATIC BALLISTICS SYSTEM

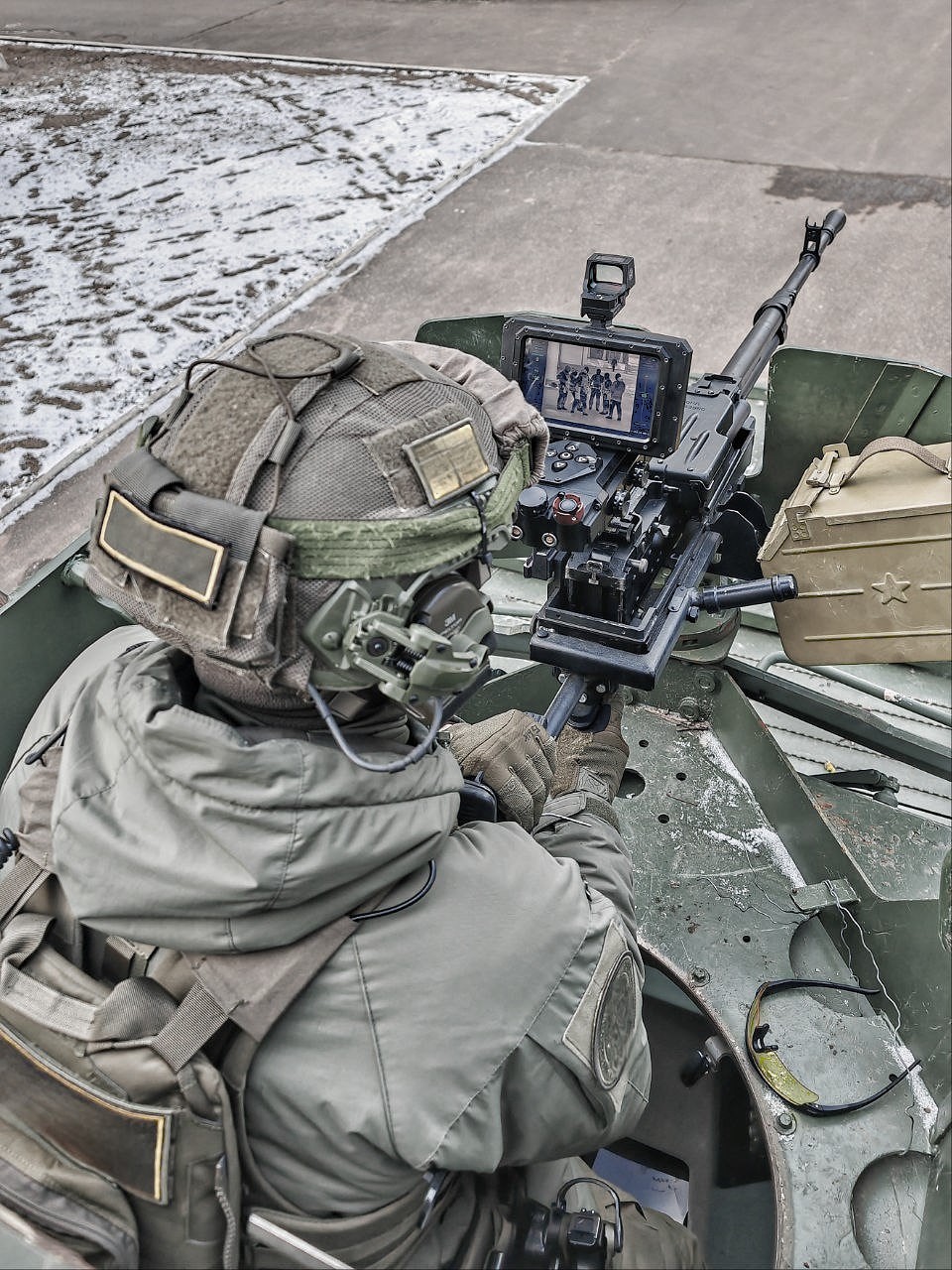

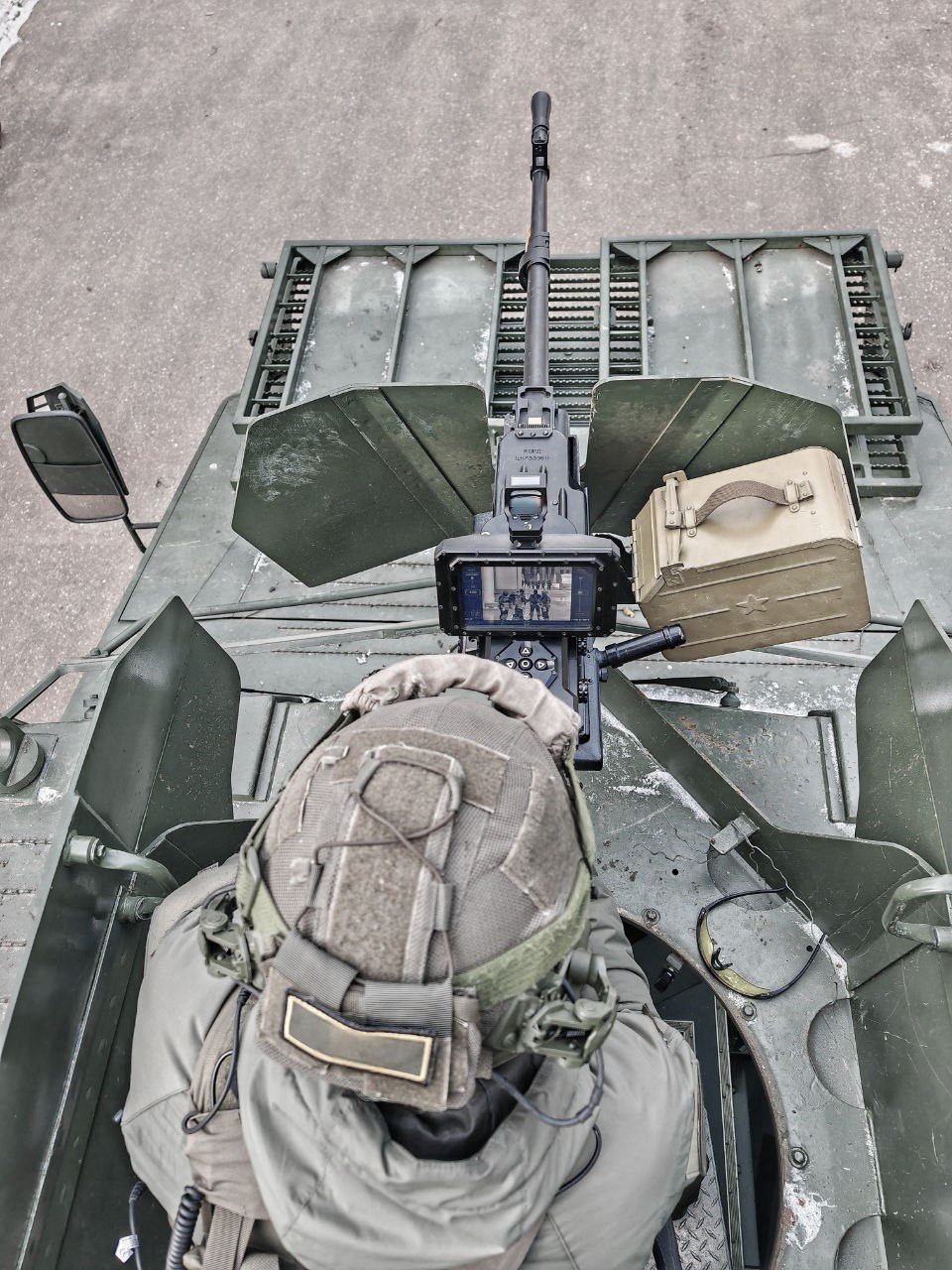

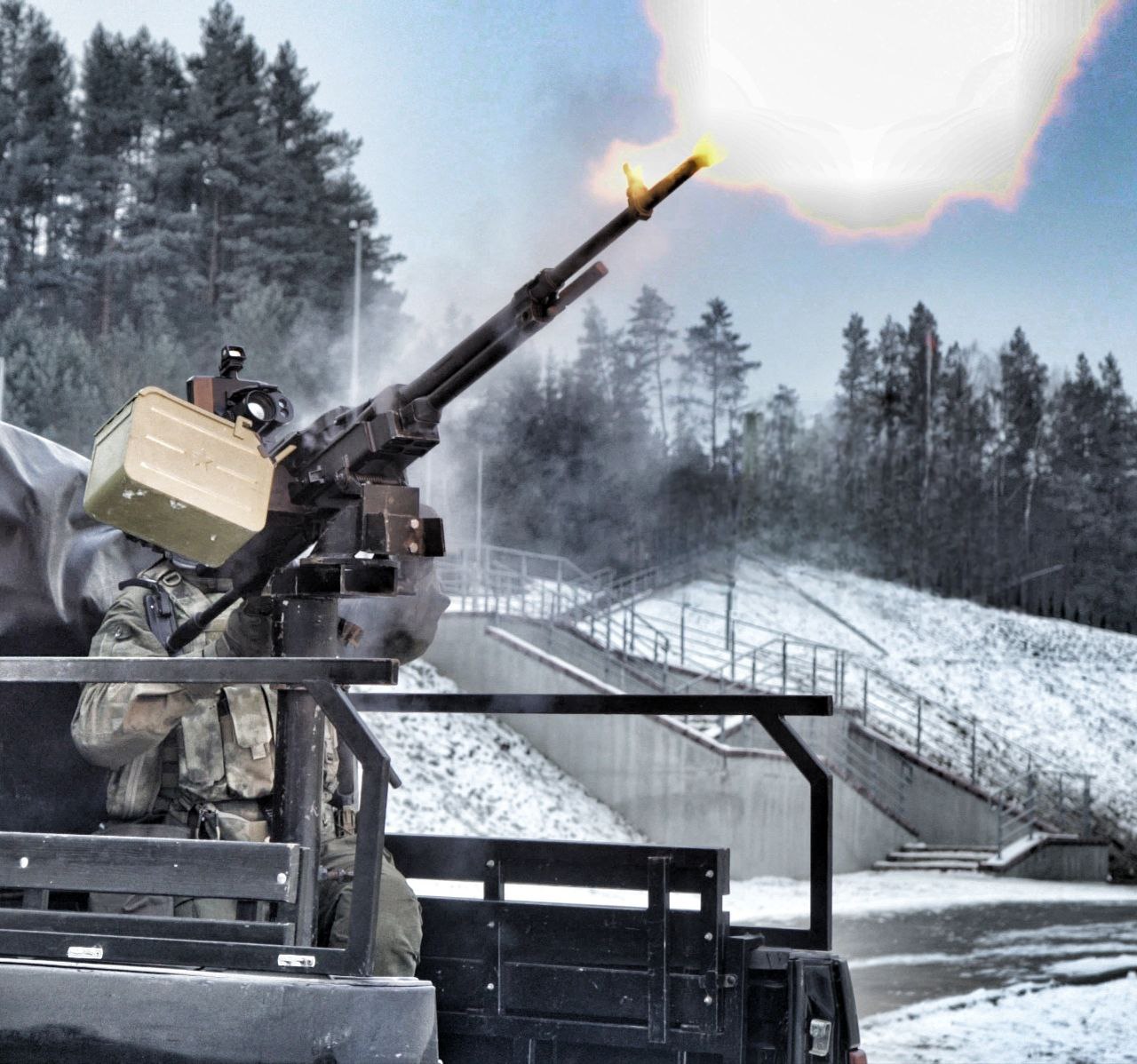

“ODIN” is a next-generation thermal sight engineered for maximum accuracy and efficiency when firing heavy machine guns. Regardless of time of day or weather conditions — you maintain the tactical advantage.

PRECISION FIRE & ADJUSTMENT

9 user profiles – personalized configurations for different missions

Scalable reticles with customizable color and transparency

Adjustable interface opacity – minimal visual interference during aiming

PRECISION FIRE & ADJUSTMENT

- BUILT-IN BALLISTIC TABLES UP TO 1500 M WITH ADJUSTMENT CAPABILITY
- Instant automatic range correction – rapid response in combat situations
- Real-time bullet trajectory calculation accounting for elevation angle, spin drift, and environmental correlation
- Constant zero reference display – maintain control over initial zeroing parameters
- Automatic generation of ballistic reticle tailored to your specific settings

ADVANCED FEATURES

Two rangefinder modes: single measurement and continuous scan

Zeroing-in with "freeze-frame" mode – lock onto the target with a single button

Roll and pitch angle display – full control over weapon orientation

Full HD video recording – mission documentation and review

Technical Specifications

Imaging Core:
Sensor: VOx microbolometer
Resolution: 640×512 pixels
Pixel Pitch: 12μm
Calibration: Shutter-based
Sensitivity (NETD): <40mK
Optical System:
Lens: 55mm F1.0 germanium
FOV: 7.99°×6.39°
Digital Zoom: x1-8 continuous
Reticle Step: 12mm/100m
Rangefinder:
Max Range: 2,500m
Display & Power:
Monitor: 1920×1080 OLED
Batteries: 4×21700 Li-ion (3.7V)
External Power: 5-25V DC input
Runtime: ≤5 hours (battery)
Physical:
Weight: 2,980g (excluding batteries/mount)
Dimensions: 310×189×183mm (L×W×H)
Protection: IP67
Operating Temp: -20°C to +50°C

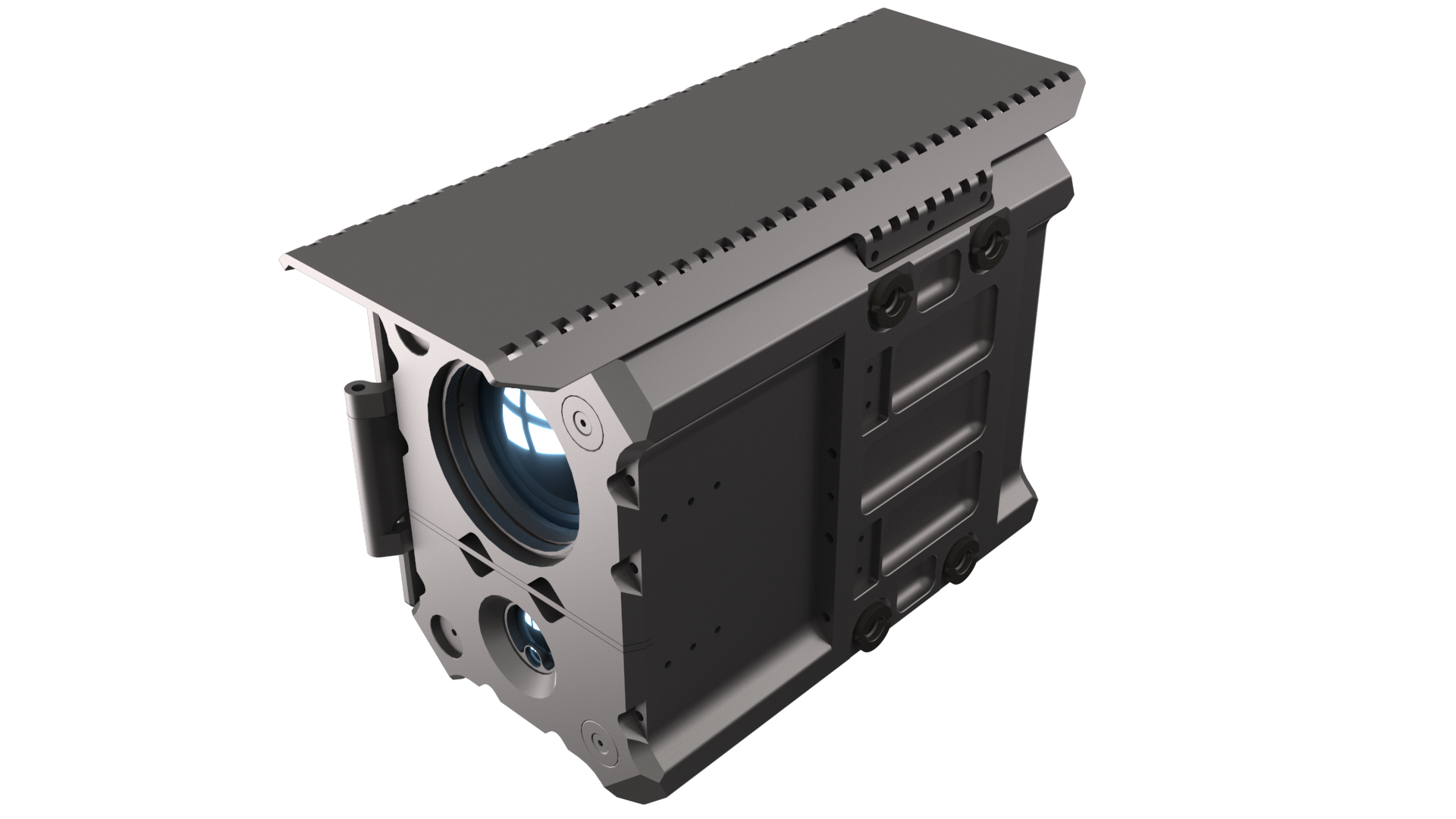

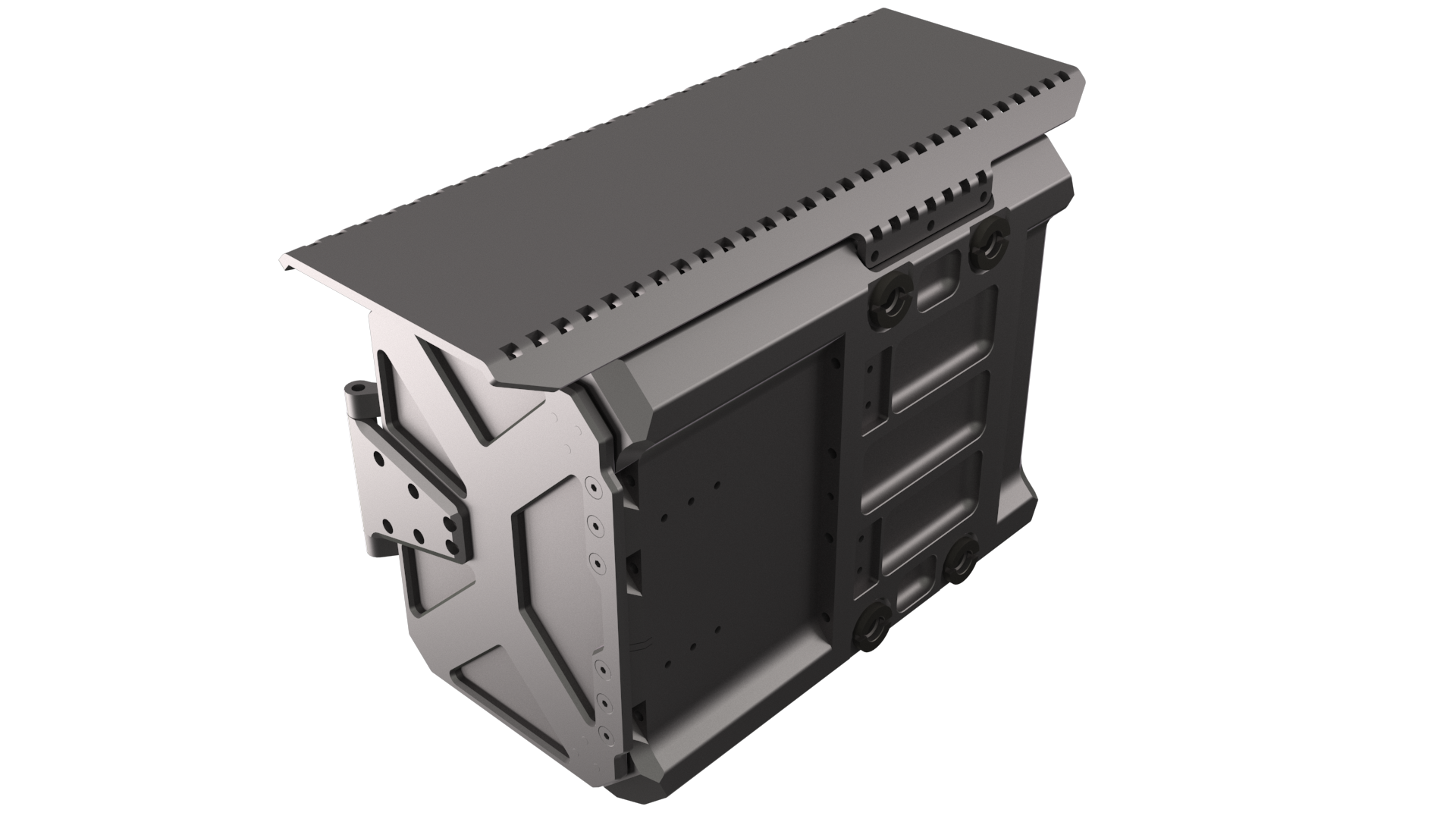

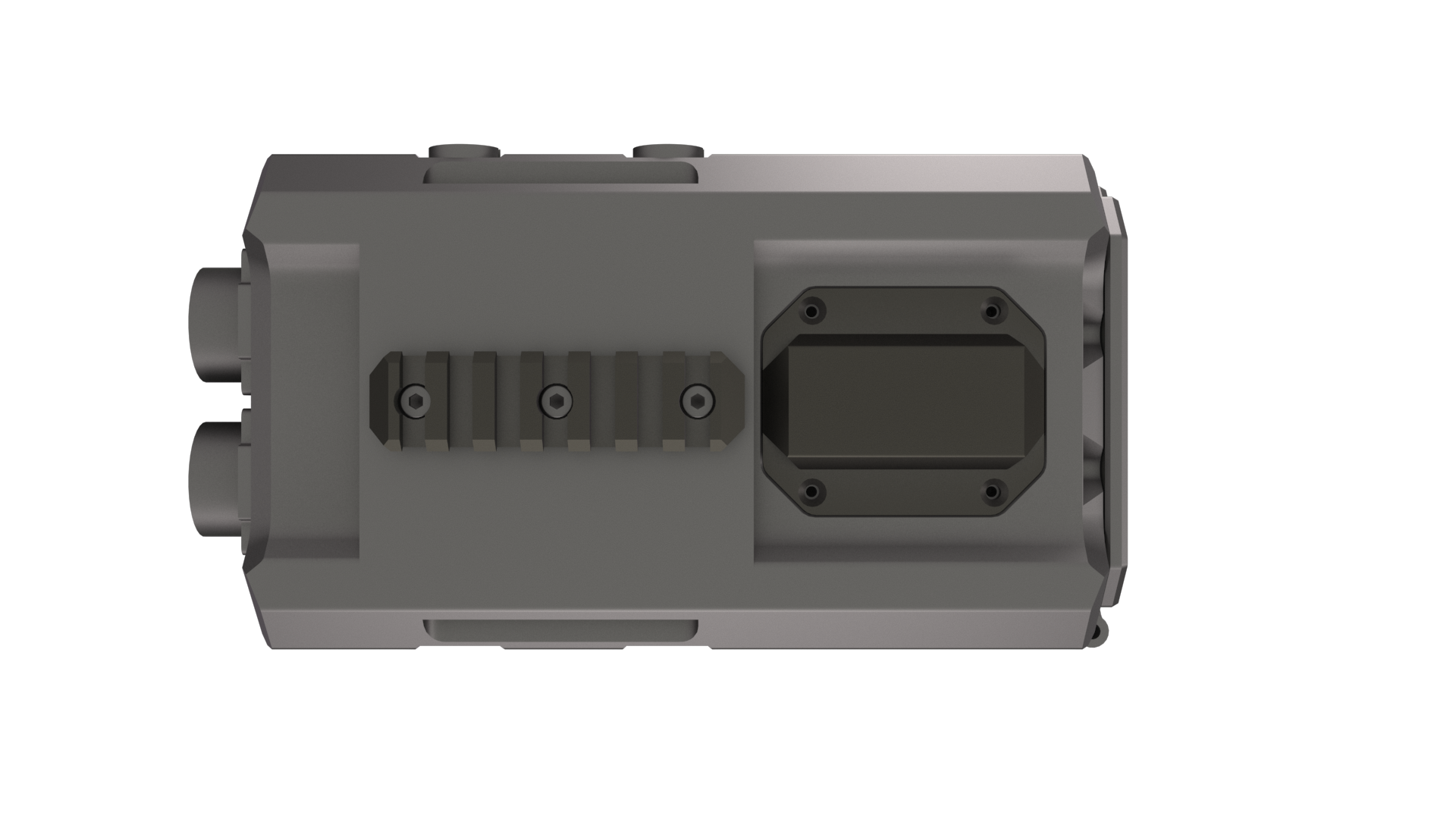

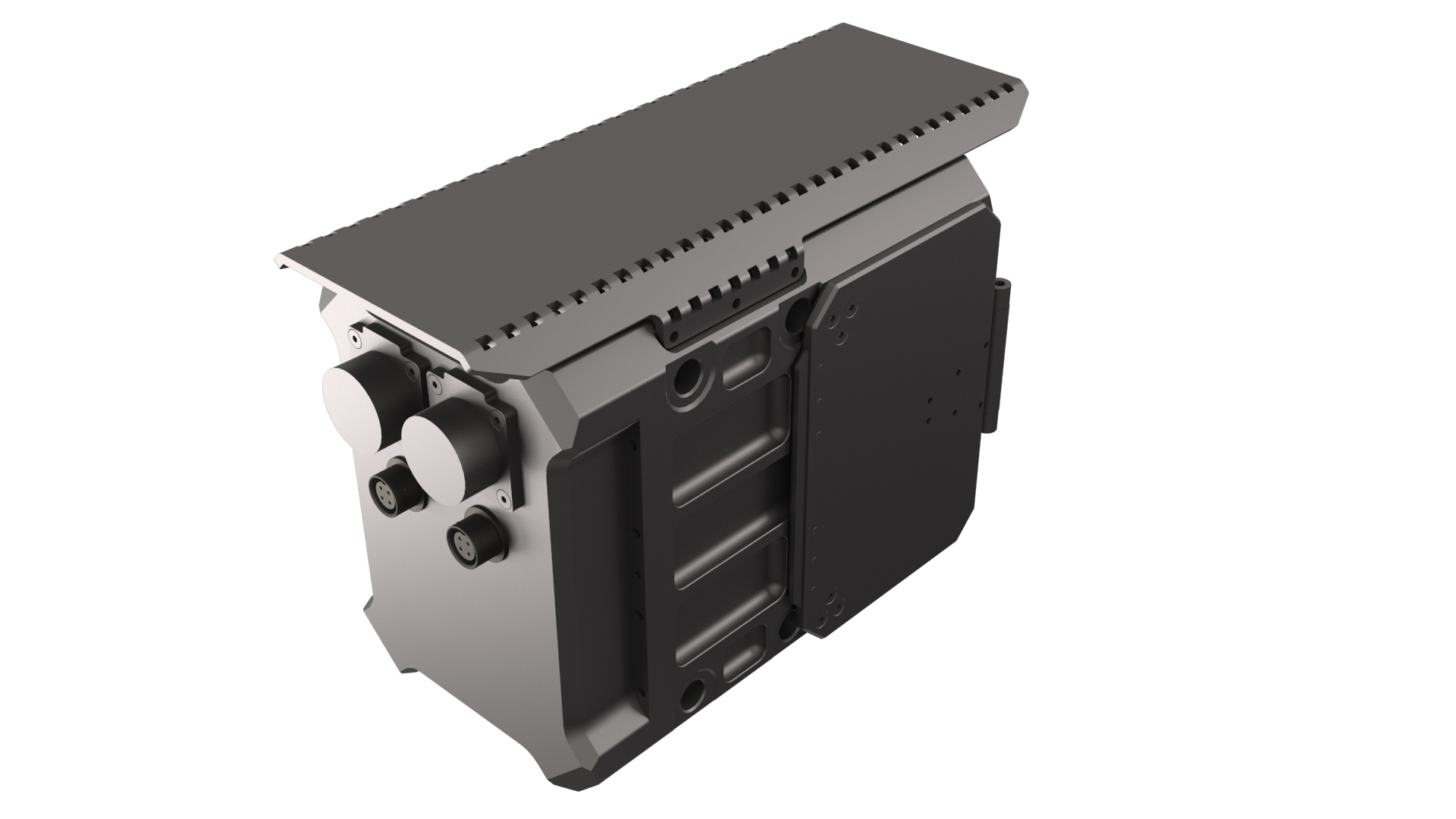

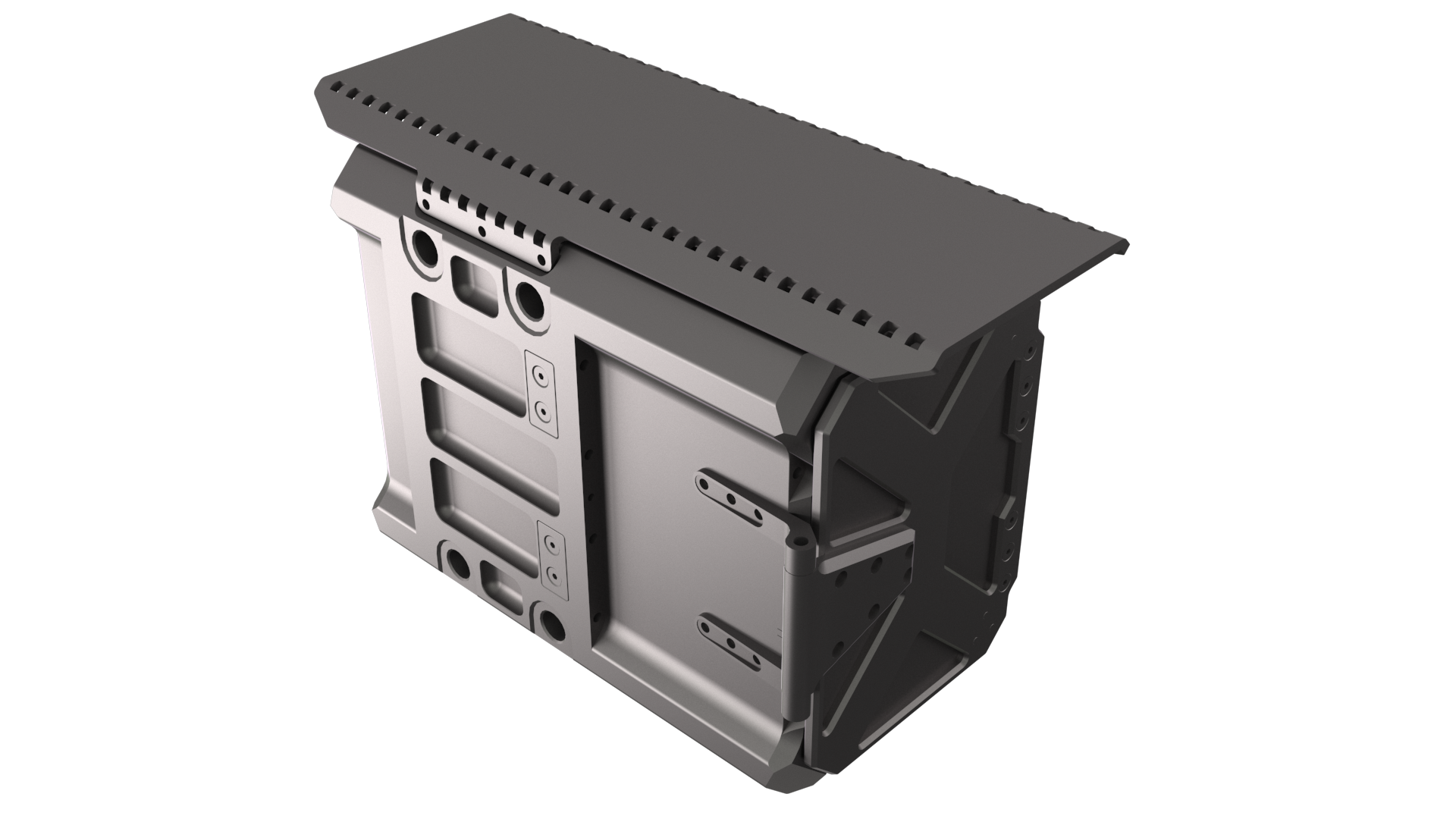

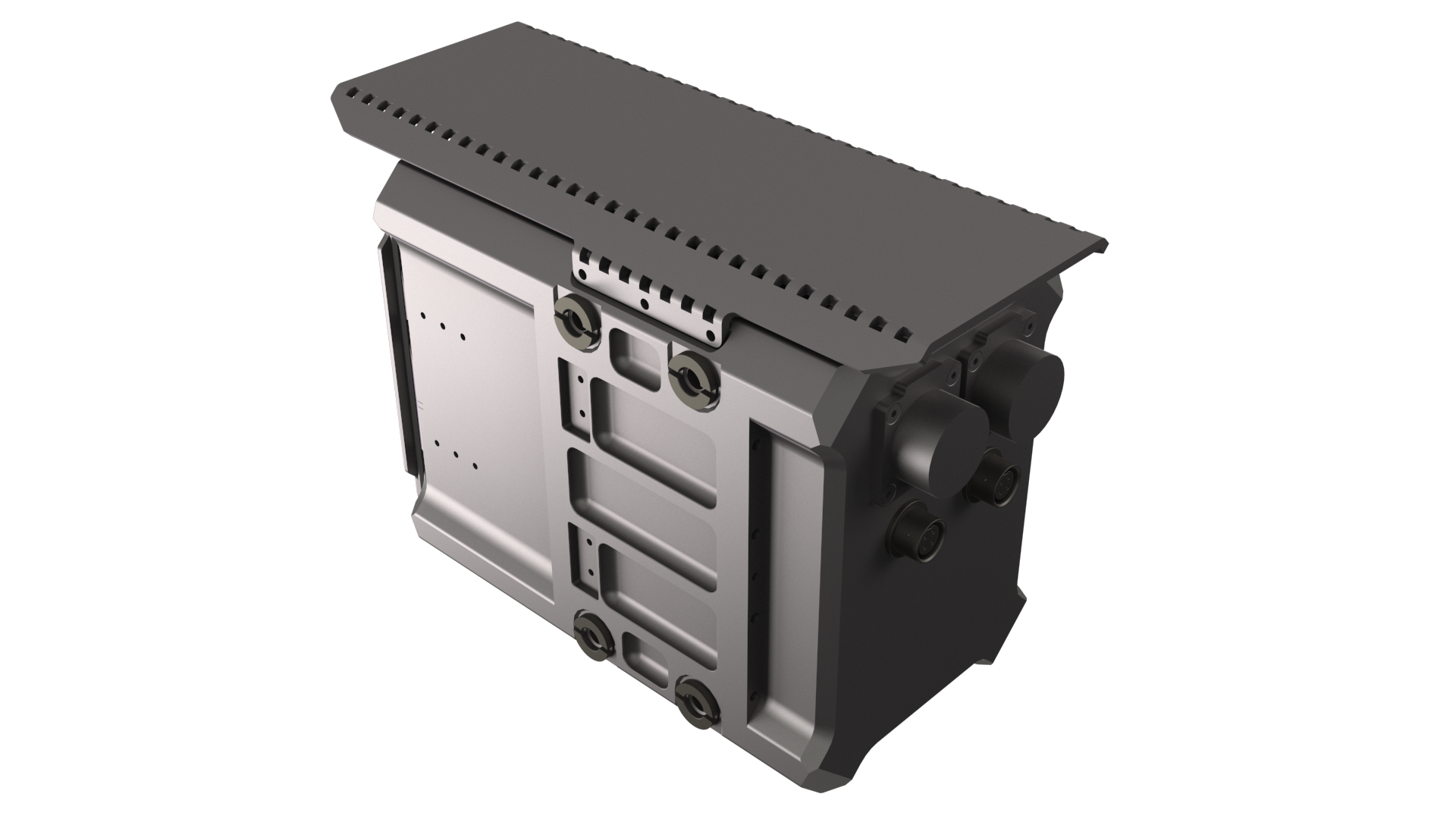

"HAMMER" TARGETING MODULE FOR AUTOMATED WEAPON SYSTEMS
WITH LASER RANGEFINDER AND AUTOMATIC BALLISTICS SYSTEM

Key Features

Extended Target Detection Range
High-Resolution Thermal Imager 640х512р
Full HD Output 1920х1080р 60fps
Long-Range LRF 2500м

Thermal Channel + LRF
EO Channel + LRF
Thermal/EO Fusion + LRF

HDMI Video Output
RS232 Control Protocol
Client-Specific Adaptation
Advanced Feature Set
