"SCOUT" DRIVING AWARENESS SYSTEM

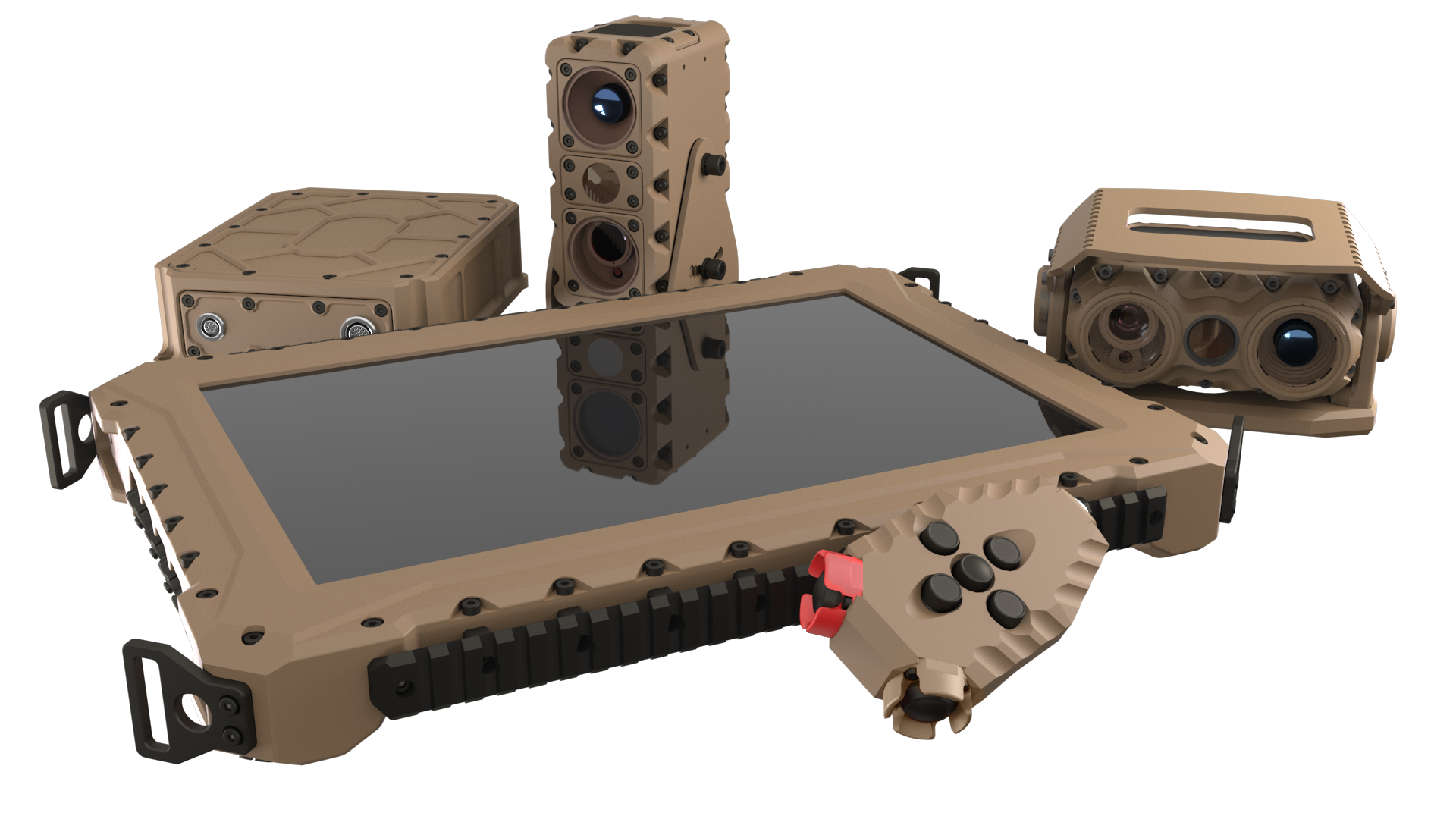

CONFIGURATION OPTIONS

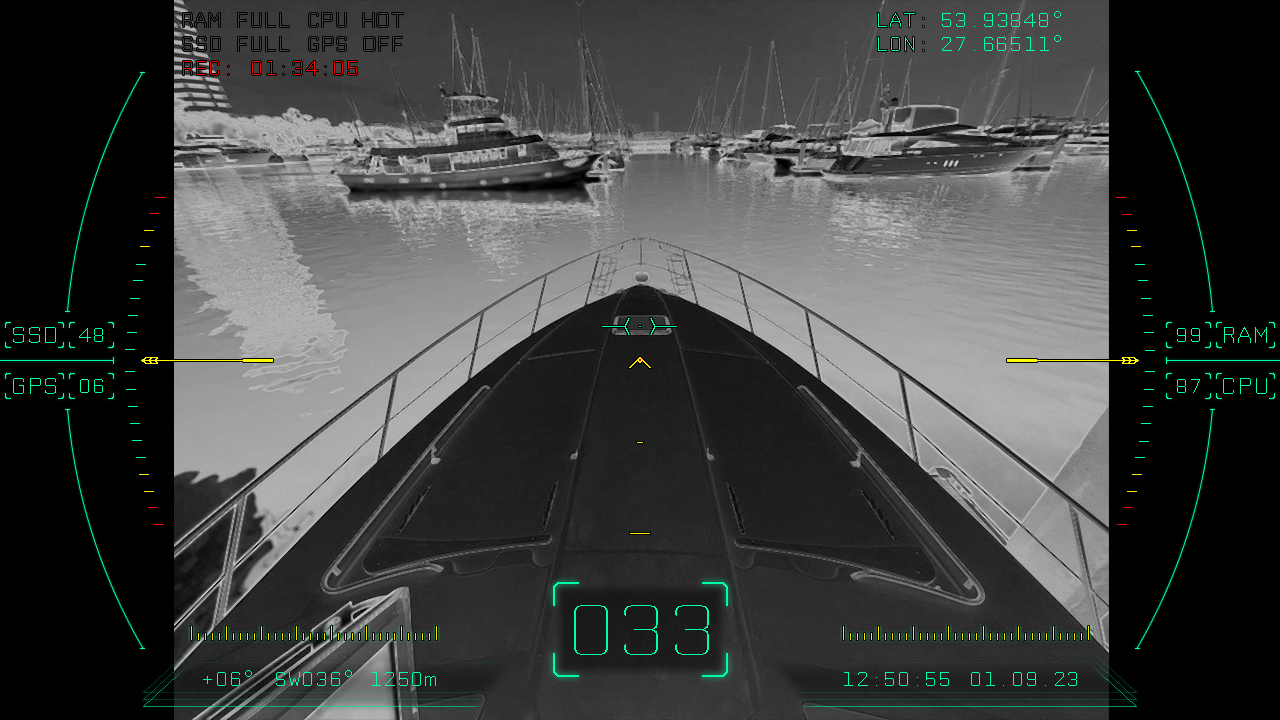

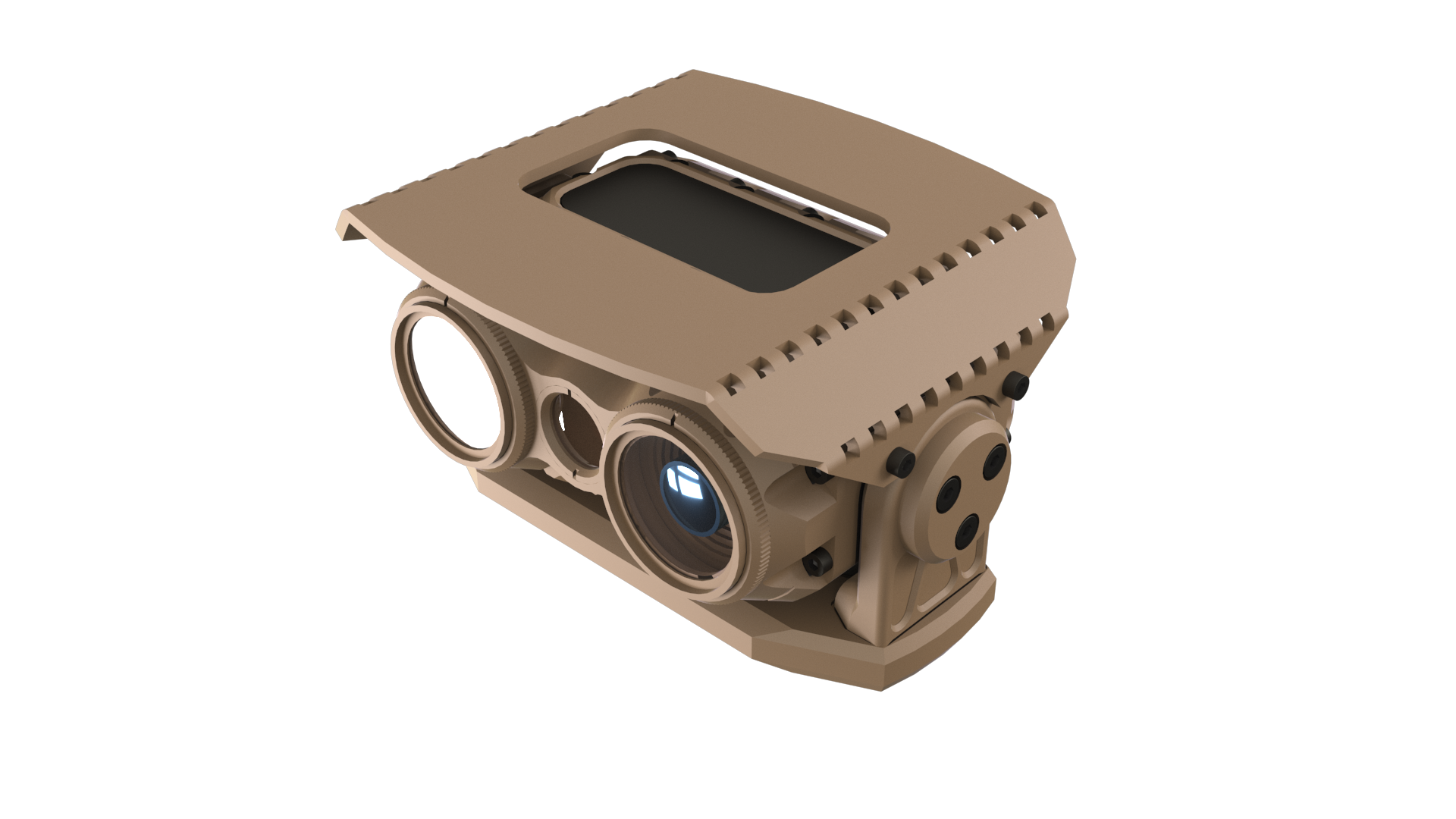

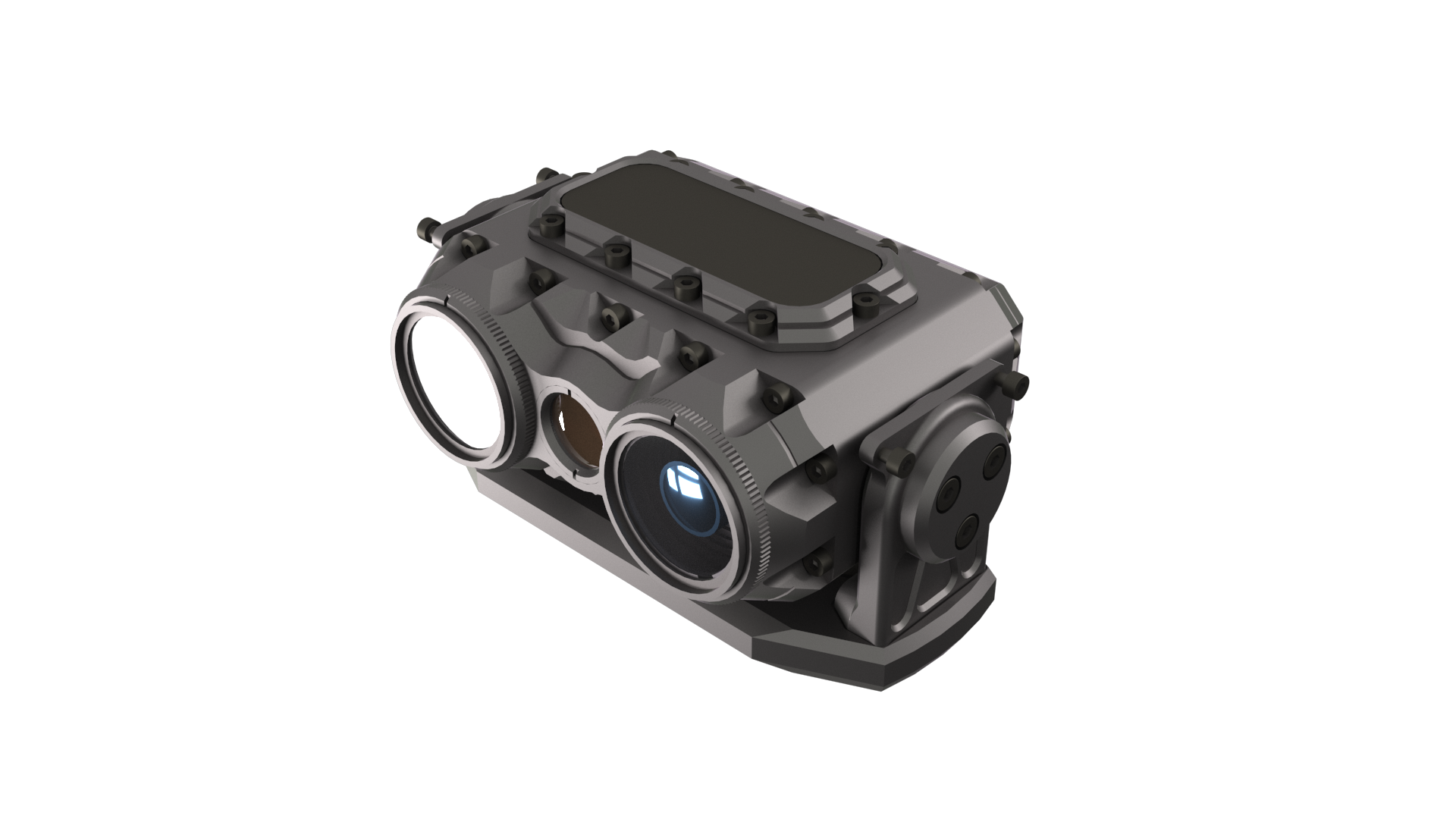

MARINE SYSTEM
Designed for boats, patrol vessels, and amphibious vehicles. Features a marine-grade aluminum housing and sapphire protective lenses. Water resistance rated IP68.

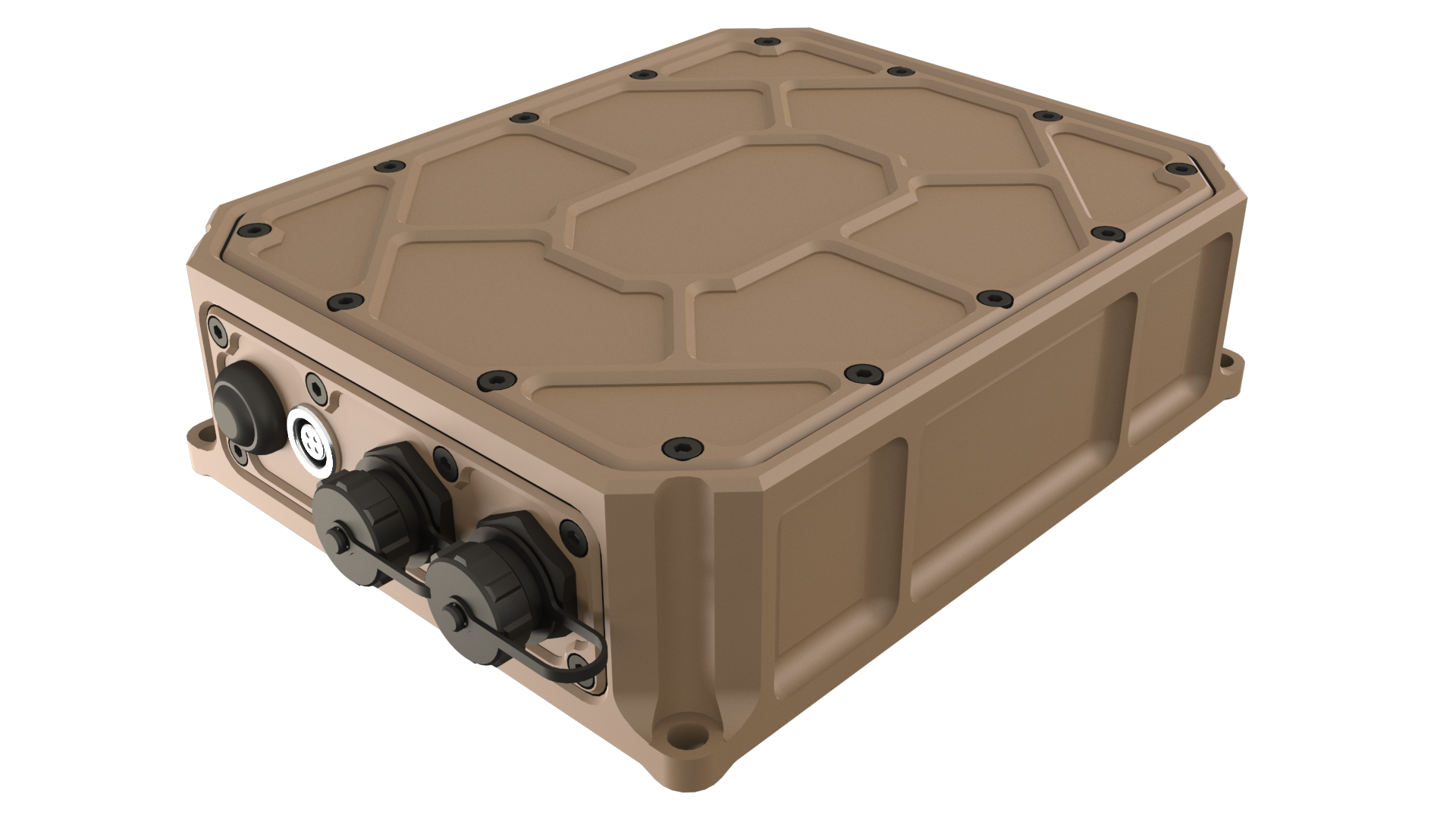

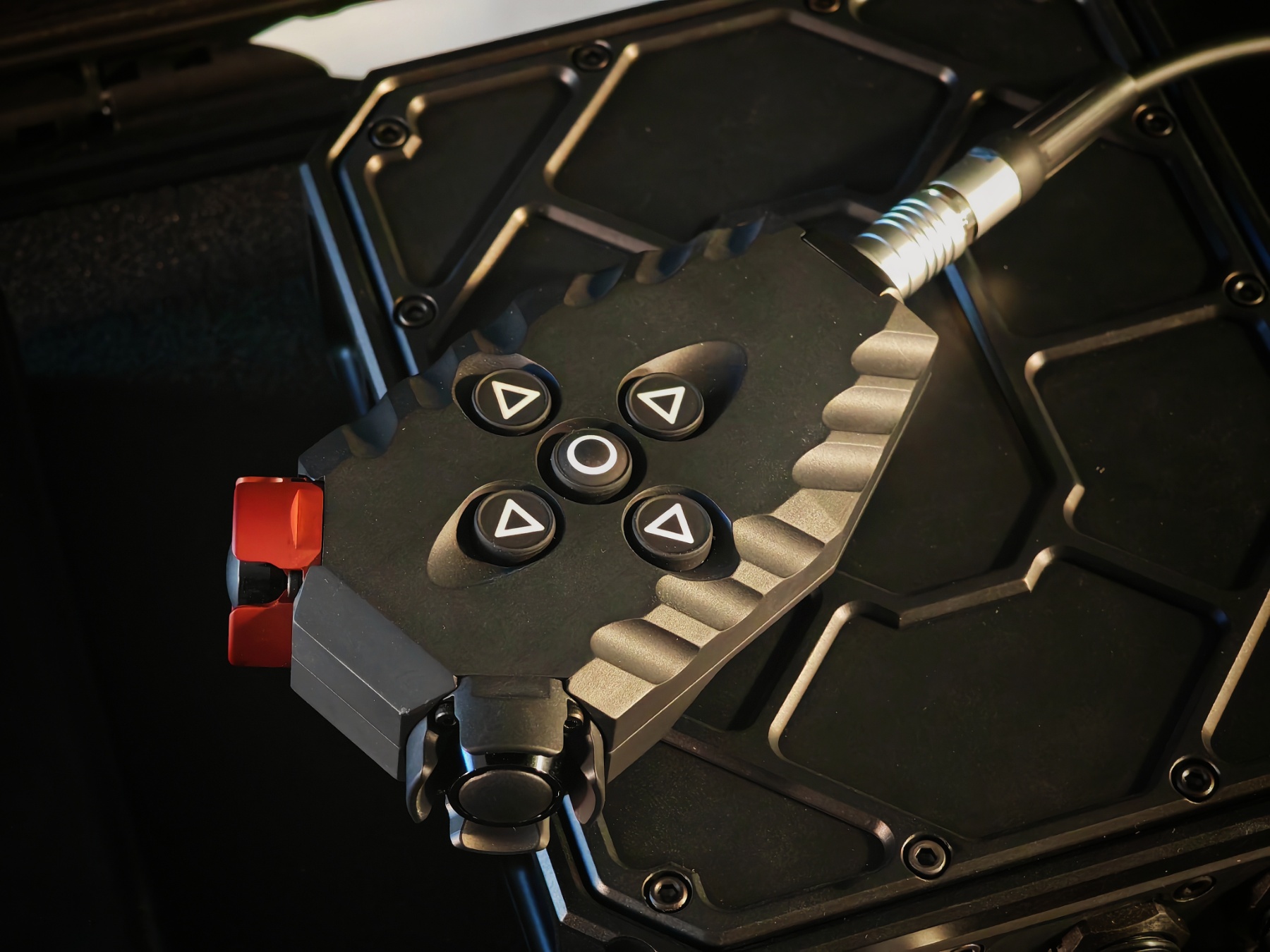

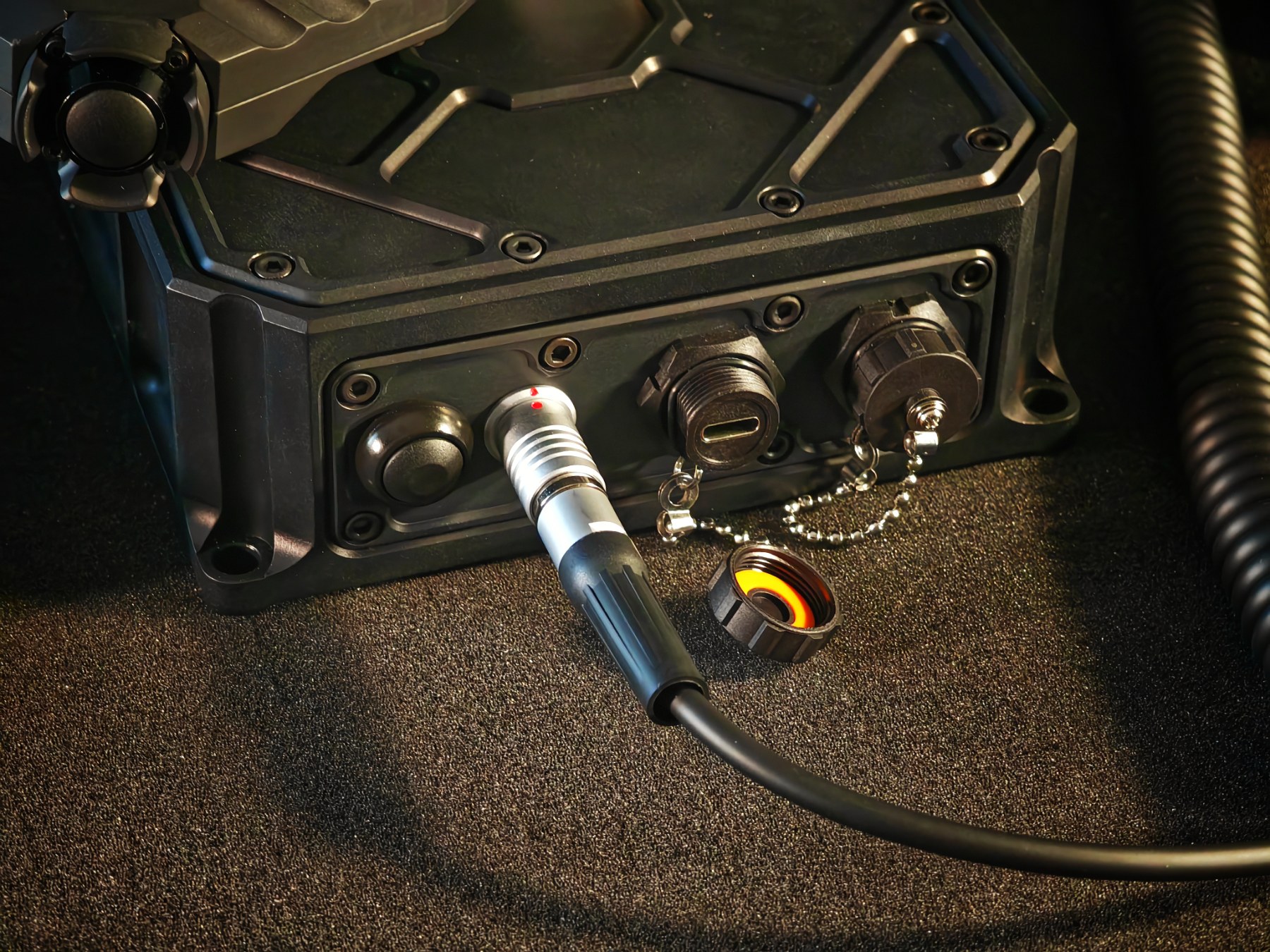

SYSTEM CONTROL UNIT
The central hub of the entire system. Equipped with a configurable camera module based on operational requirements. Installed inside the vehicle for protected access and control.

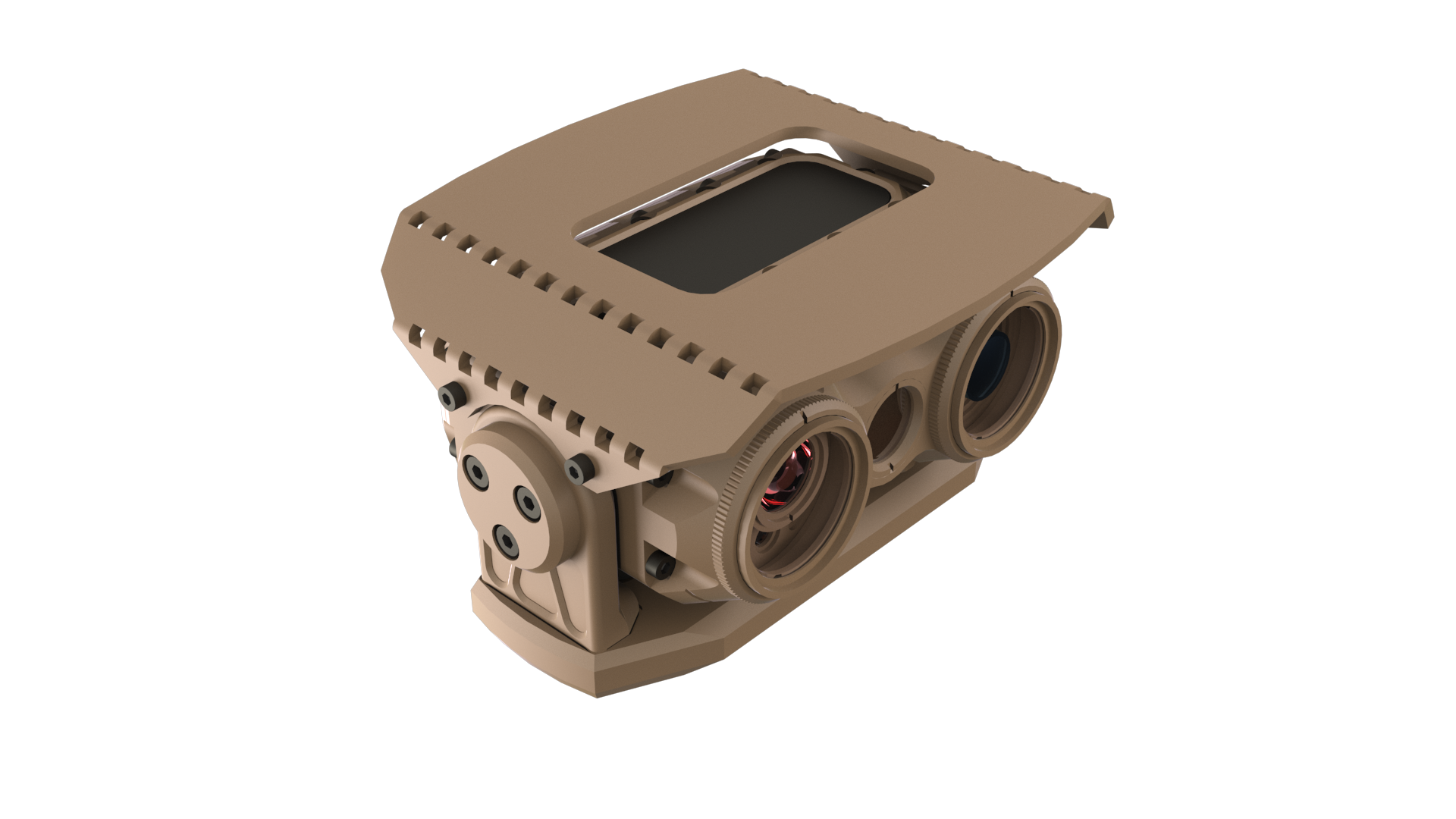

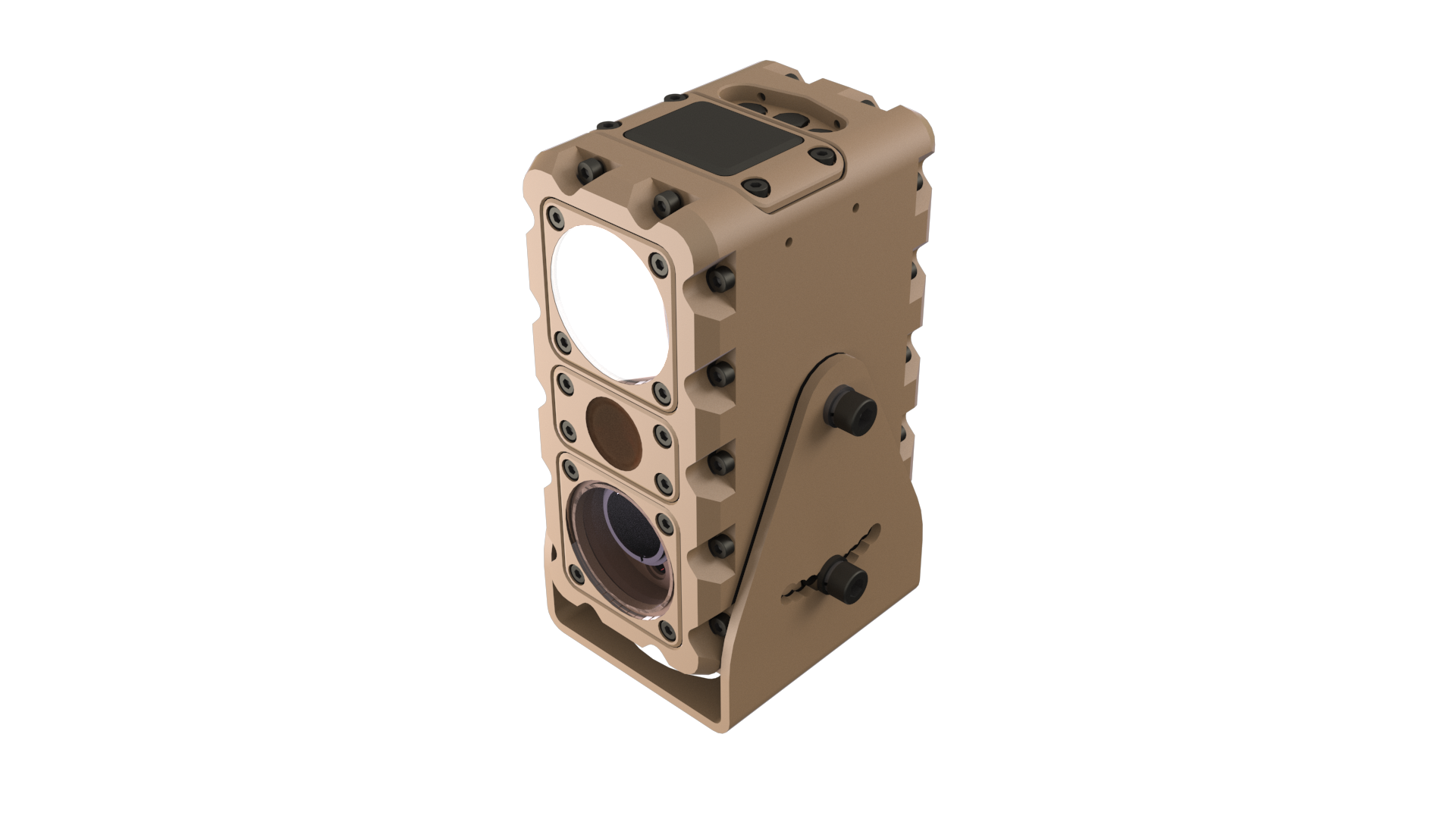

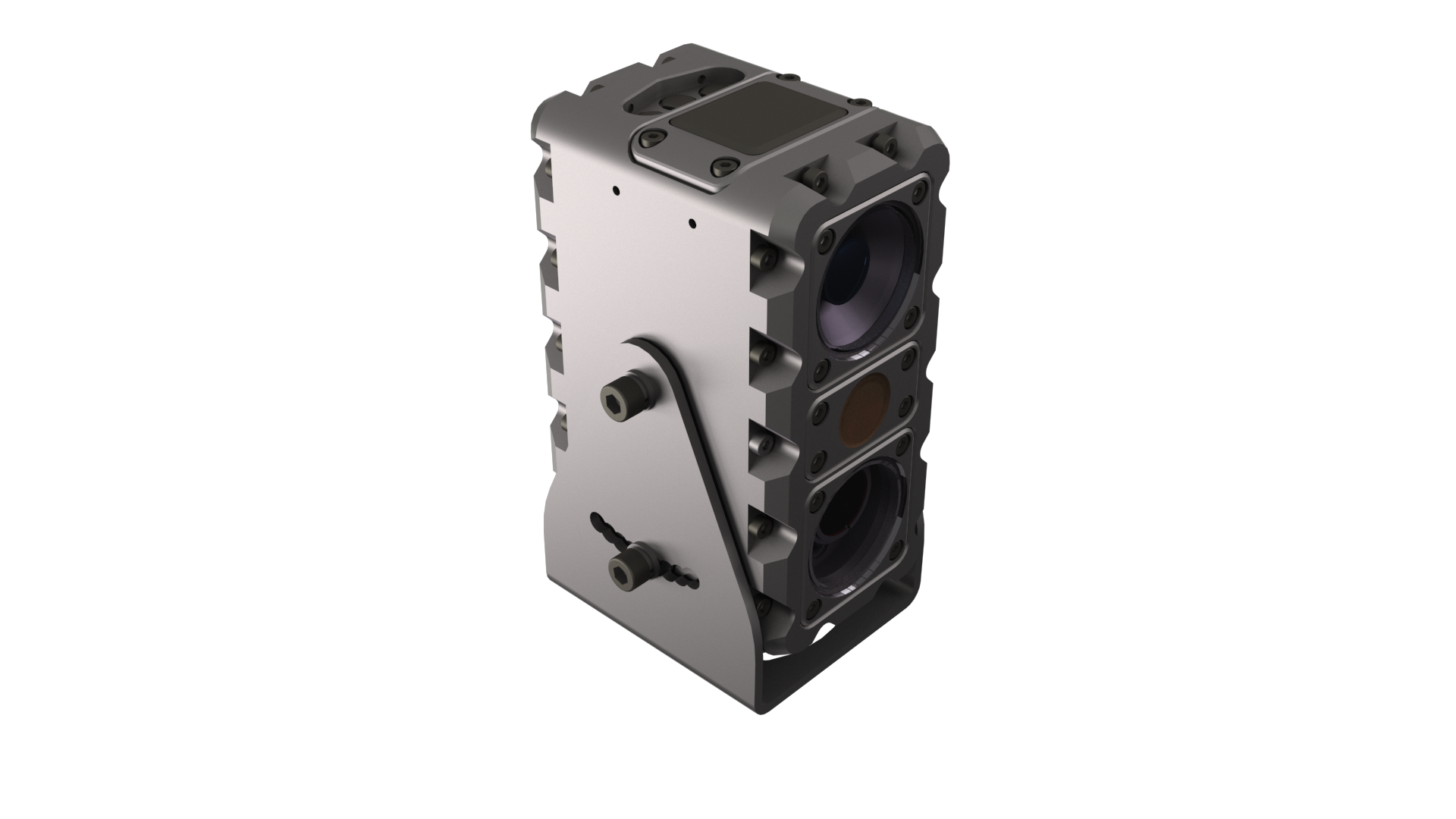

VEHICLE SYSTEM
Tailored for tracked and wheeled platforms. Includes a quick-mount system and optional armored housing. Water resistance rated IP67.

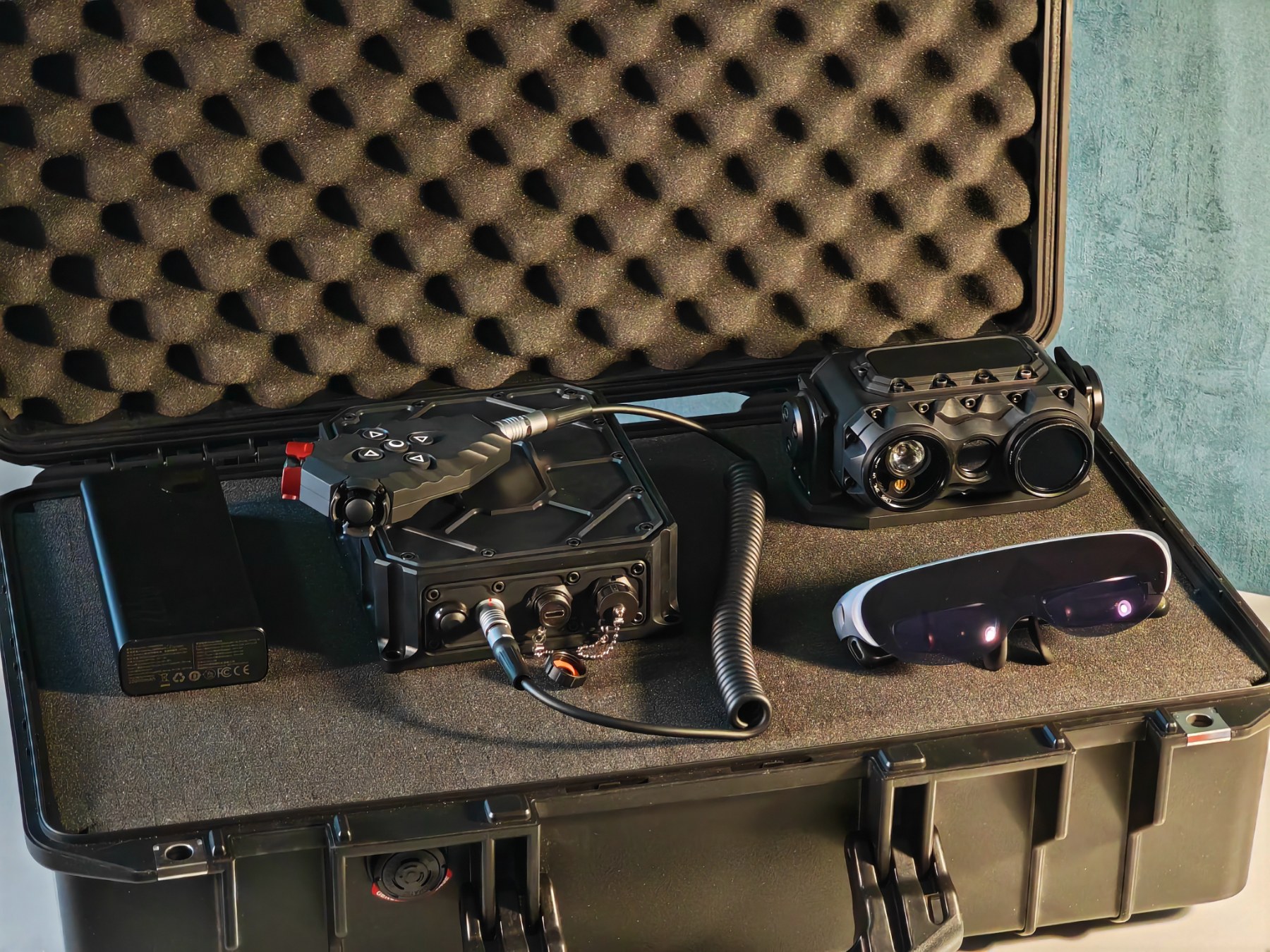

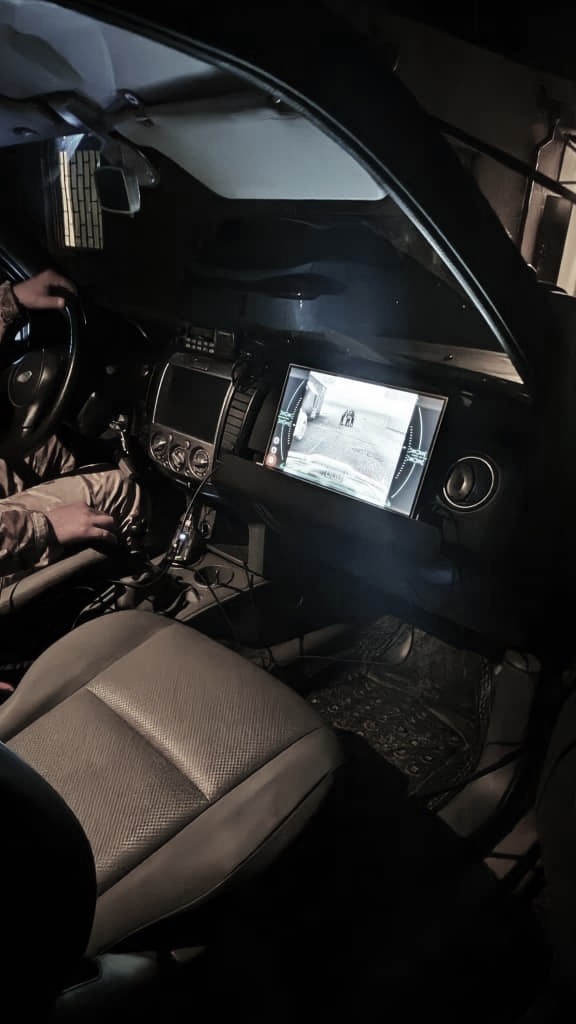

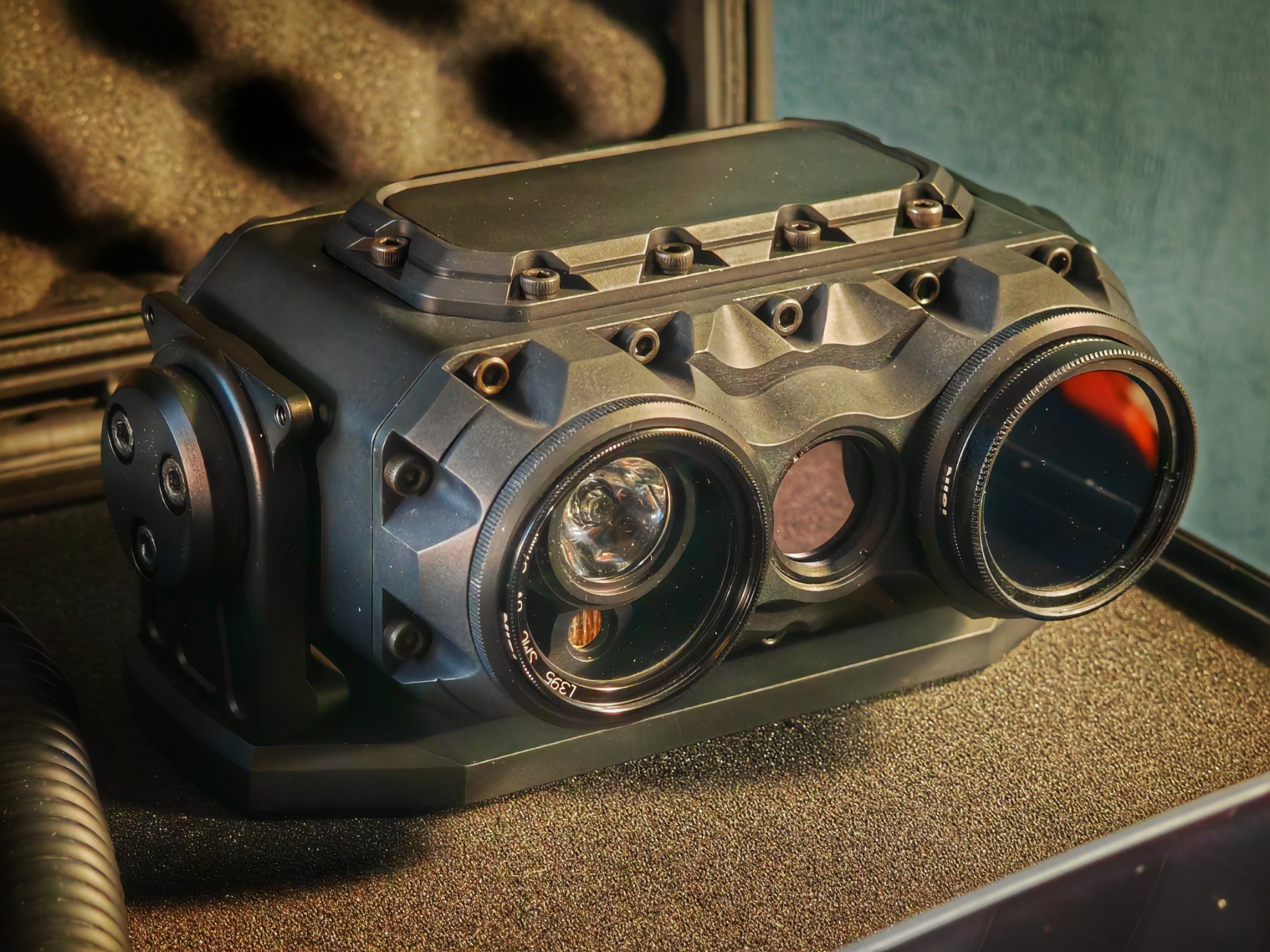

“SCOUT” is a vehicle driving and crew awareness system. Depending on the selected camera module configuration, it can be installed on wheeled and tracked vehicles, boats, and ground-effect vehicles. Its advanced interface provides drivers with all the critical information needed for safe navigation at night or in low-visibility conditions.

ADVANCED TECHNOLOGIES

•  Dual-Channel Configuration: Thermal imaging camera + day-vision camera + GPS and IMU sensors

• Single-Channel Configuration: Thermal imaging camera + GPS/IMU sensors.

• UAV Detection Configuration: Integrated drone (UAV) detection system.

• Extended Sensor Configuration: Additional environmental sensors — barometer, hygrometer, anemometer.

SYSTEM CAPABILITIES

KEY ADVANTAGES

Full nighttime mobility without the need for revealing external light sources
Thermal visibility through smoke, fog, snow, and rain
Rapid system installation without the need for special tools
Dual video outputs with Full HD support and automatic display adaptation
Greater detection range than traditional Gen 2+ and Gen 3 night vision systems
Compact and lightweight design, powered by 5V, 2A

SYSTEM SPECIFICATIONS

• TH SENSOR: VOx, 640x512, 12μm
• TV SENSOR: OV2311, 1600x1200
• REFRESH RATE: 50 FPS
• CALIBRATION: SHUTTER-BASED
• SENSITIVITY (NETD): 40 mK
• ANGLE OF VIEW: 90° (TV), 46.2° (TH)
• GNSS: GPS, GLONASS
• IMU SENSOR: 10 DEGREES OF FREEDOM
• DETECTION RANGE (TH): UP TO 800M
• VIDEO OUTPUT: 1920x1080P AT 50FPS
• VIDEO OUTPUT TO TWO SIMULTANEOUS SOURCES

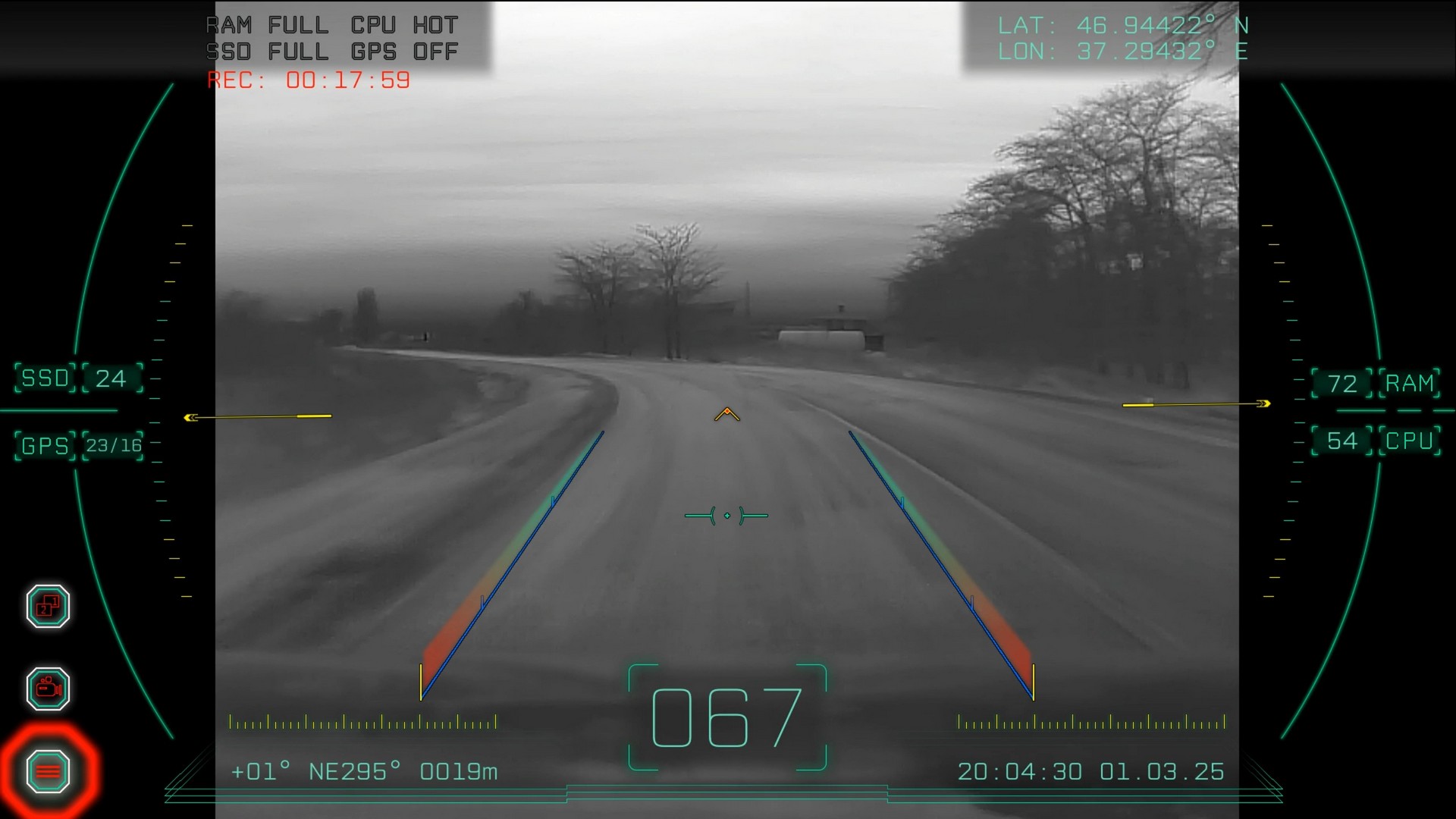

• LINEWIDTH DISPLAY VIRTUAL
• VIRTUAL CENTER INDICATOR
• ROLL ANGLE DISPLAY
• PITCH ANGLE DISPLAY
• GNSS COORDINATES DISPLAY
• ON-SCREEN DATE AND TIME
• REAL-TIME SPEED
• ALTITUDE ABOVE SEA LEVEL
• AMBIENT TEMPERATURE
• SYSTEM ERROR INDICATOR
• BUILT-IN VIDEO RECORDING
• COMPATIBLE WITH AUGMENTED REALITY GLASSES
